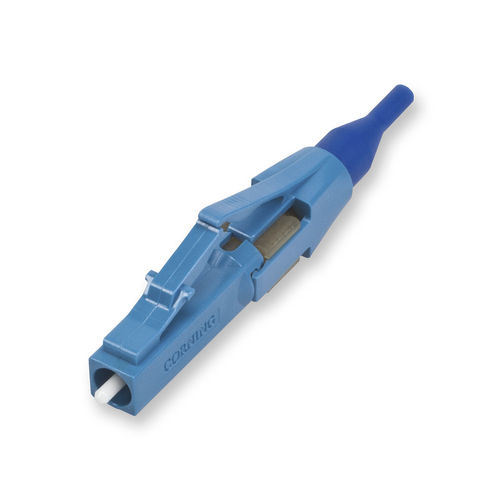

RF connector 95-200-99
LCcrimpcomposite

RF connector
RF connector
Add to favorites
Compare this product


Characteristics

Type
RF
Format
LC
Connection type
crimp
Material
composite
Product applications
housing, cable, package
Domain
fast, optical
Operating temperature

Min.: -40 °C
(-40 °F)

Max.: 75 °C
(167 °F)

Description

UniCam® Connector, LC Single-mode (OS2) Fiber Category - Single-mode (OS2) Product Type - Field-Installable Connectors Corning Logo - Yes Keyed (security) - No Technology - No-Epoxy/No-Polish RoHS - Free of hazardous substances according to RoHS 2011/65/EU Connector Type - LC Housing Color - Blue Boot Color - Blue Ferrule Material - Ceramic Pinned - No Nominal Fiber Outer Diameter - 125 µm Tensile Strength Jacketed Cable - 44 N (9.89 lbf) Durability - ≤ 0.2 dB change, 500 rematings, FOTP-21 Tensile Strength 900 µm Cable - 4.9 N (1.1 lb) change ≤ 0.2 dB, FOTP-6 Polish - UPC Insertion Loss, Max. - 0.5 dB Reflectance - < -55 dB Insertion Loss, Typical - 0.2 dB Packaging - Individual Pack Package Contents - "Connector, Trigger, Crimp Band, Boot (900 µm), Boot (3.0 mm), Boot (2.0 mm)" Performance guaranteed 100 percent yield guarantee Broad operating temperature range (-40°C to +75°C) Utility and flexibility Factory-polished end face Consistent optical performance Fast termination and no consumables Low installation cost Minimum insertion loss Optimum optical performance
