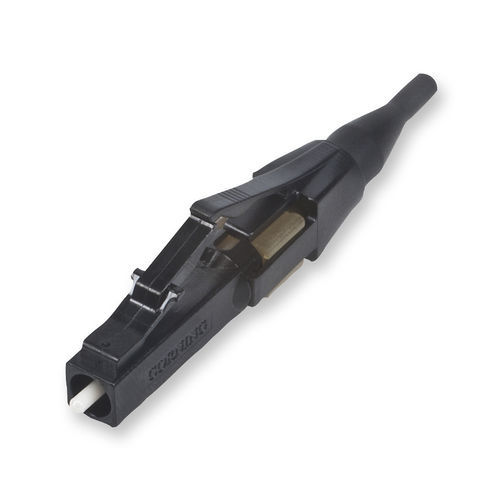

UniCam® Connector, LC 50 µm multimode (OM2)
Fiber Category - 50 µm MM (OM2)
Product Type - Field-Installable Connectors
Corning Logo - Yes
Keyed (security) - No
Technology - No-Epoxy/No-Polish
RoHS - Free of hazardous substances according to RoHS 2011/65/EU
Connector Type - LC
Housing Color - Black
Boot Color - Black
Ferrule Material - Ceramic
Pinned - No
Nominal Fiber Outer Diameter - 125 µm
Tensile Strength Jacketed Cable - 50 N (11.24 lbf)
Durability - ≤ 0.2 dB change, 500 rematings, FOTP-21
Tensile Strength 900 µm Cable - 4.9 N (1.1 lb) change ≤ 0.2 dB, FOTP-6
Polish - UPC
Insertion Loss, Max. - 0.5 dB
Insertion Loss, Typical - 0.1 dB
Packaging - Individual Pack
Package Contents - "Connector, Trigger, Crimp Band, Boot (900 µm), Boot (3.0 mm), Boot (2.0 mm)"
Performance guaranteed
100 percent yield guarantee
Broad operating temperature range (-40°C to +75°C)
Utility and flexibility
Factory-polished end face
Consistent optical performance
Fast termination and no consumables
Low installation cost
Minimum insertion loss
Optimum optical performance
