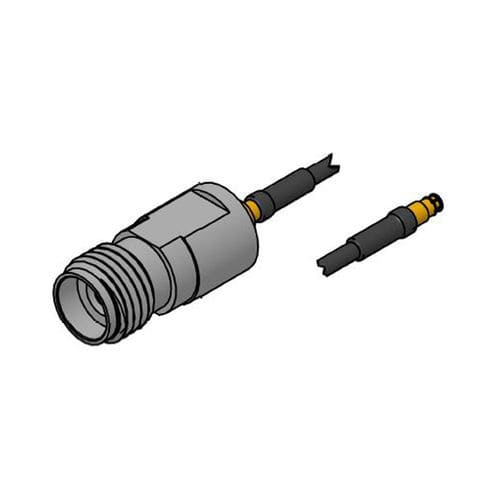

RF cable assembly 2-S1A-D1A-16-L

Finish, Contacts - Gold plated per MIL-G-45204, Type I, Grade C, Class 1, Over Nickel Plate per SAE AMS-QQ-N-290 Materials, Outer Contacts - Beryllium Copper per ASTM B196 and or/ASTM B197 Materials, Springs - 17-7 Stainless Steel per ASTM A313-95A Finish, Bodies - Gold plated per MIL-G-45204, Type I, Grade C, Class 1, Over Nickel Plate per SAE AMS-QQ-N-290 Materials, Center Contacts - Beryllium Copper per ASTM B196 and or/ASTM B197 Impedance - 50 Ω Materials, Insulators - PTFE Fluorocarbon per ASTM D1710, Polyamide-imide per ASTM D5204 Frequency Range - DC to 60 GHz typ. Materials, Bodies - Beryllium Copper per ASTM B196 and or/ASTM B197 Product Type - Assemblies Tolerated Misalignment Axial - 0.007 (flush to 0.007 from reference plane) Tolerated Misalignment Radial - ± 0.005 Typical Force to Engage / Disengage FD - 65 lb / 2.2 lb Typical Force to Engage / Disengage SB - 20 lb / 15 lb VSWR - 1.10:1 to 26.5 GHz1.25:1 to 65 GHz Contact Resistance - Inner Conductor - 6 mΩ Contact Resistance - Outer Conductor - 2 mΩ Insulation Resistance - 3500 megohms minimum DWV at Sea Level - 250 Vrms RF Leakage - -80 dB to 3 GHz, -65 dB to 26.5 GHz Insertion Loss - .03 √f (GHz) Designed to accommodate both radial and axial misalignment with negligible voltage standing wave radio (VSWR) change Meets all MIL-STD Performance specifications Center-to-center spacing of 0.070-in and board-to-board spacing of 0.090-in are available for increased package density Frequency from DC to 100 GHz
