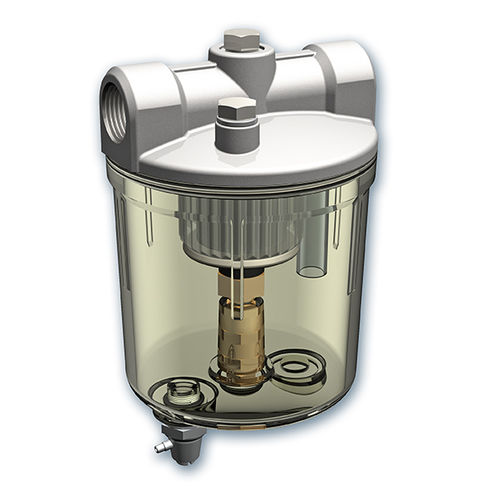

Air filter FSLI Series

liquidcartridgesingle-basket

We particularly recommend using the FSLI series liquid separator vacuum filter to retain liquid and particles that may be found in a vacuum network. The filtering element consists of a 50 micron stainless steel filter and protects the vacuum generator under normal operating conditions. Advantages . Transparent tank that makes clogging visible. . Manual drain in the bottom of the tank used to remove any liquid and dirt (Note: This operation must only be carried out when the vacuum network is at atmospheric pressure). Specifications Material: . Lid: molded aluminium . Tank: transparent polycarbonate . Filter cartridge: stainless steel . Accessories: stainless steel, brass and nickel-plated brass . Seal: nitrile Filtering: 50 microns Operating range: -1 to 2 bar Pressure max.: 2 bar Temperature: 0 to 50 °C Filtering Element Reference of the filtering element: FVUM12E Mounting Bracket For FSL Series Liquid Separator Filter FSL38FIX Note: Supplied with two M6 screws to mount bracket on filter. Material: zinc-plated steel
