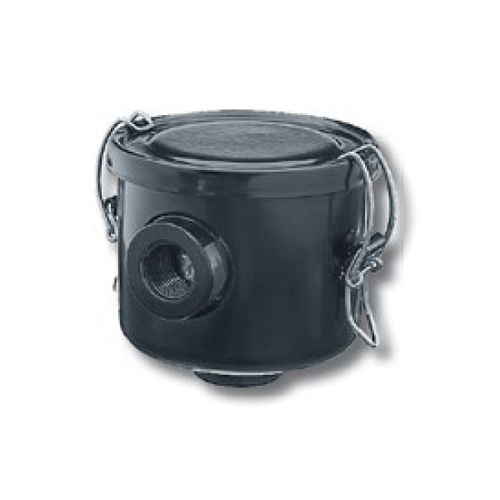

Cartridge filter housing FVI series
for compressed airmetalhigh-flow

cartridge filter housing
cartridge filter housing
Add to favorites
Compare this product

Characteristics

Filter type
cartridge
Fluid
for compressed air
Material
metal
Other characteristics
high-flow, high-performance
Operating pressure

850 mbar (12.328 psi)

Flow rate

Max.: 5,000 l/min (1,320.86 us gal/min)

Min.: 400 l/min (105.669 us gal/min)

Description

Vacuum Filters, FVI . 6 models . 3 filtration materials: paper, polyester and stainless steel . Fitting: G3/8", G1/2", G3/4", G1"1/4, G1"1/4 and G2" . Filtration: 5 to 60 microns . Body material: Stamped steel sheet The FVI range is compatible with pneumatic vacuum generators (venturi) or electric vacuum pumps (the FVI 2 model is suitable for a suction turbine). Each filter is fitted with an interchangeable cartridge treated to guarantee long life expectancy for the whole unit. The filtering element consists of a 5 micron filter (made of paper for version C), which is sufficient to protect pumps and venturi under normal operating conditions. Note: For filtration leaving large deposits (powder), mount the fi lter horizontally or upside down. Important : These filters are designed for vacuum. They cannot withstand pressure greater than atmospheric pressure. Filter cartridge available in 3 versions: paper, polyester and stainless steel. Specifications Material: . Body stamped steel sheet . Treatment: Black paint Filtration: . 5 microns with a paper cartridge . 3 microns with a polyester cartridge . 60 microns with a stainless steel cartridge Pressure loss: . 2 to 4% vacuum with a new filter . 5 to 7% vacuum with average clogging
