tubular heating element / stainless steel / custom / armored

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
tubular heating element / stainless steel / custom / armored tubular heating element / stainless steel / custom / armored
{{requestButtons}}

Characteristics

  • Type:

    tubular

  • Material:

    stainless steel

  • Other characteristics:

    custom, armored, multi-zone, for liquids and gases, for fluid preheating, for gas

  • Maximum temperature:

    Min.: 0 °C (32 °F)

    Max.: 750 °C (1,382 °F)

  • Power:

    Min.: 0 kW (0 hp)

    Max.: 50 kW (67.98 hp)

Description

OPERATING TEMPERATURE: MAX 750°C

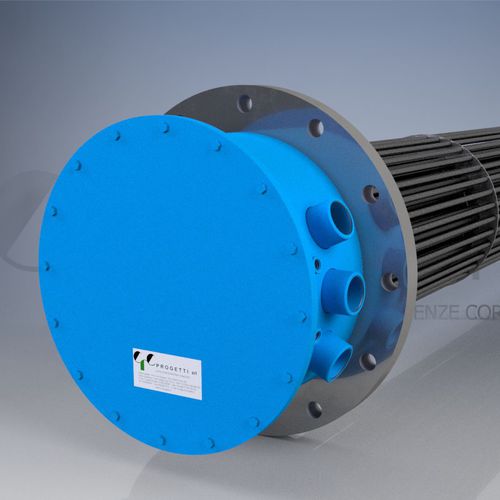

FLANGE fastening that can be in IRON and STAINLESS STEEL. Size and shape standard or as indicated by the customer.

BOXES – HEADS for electrical connections customizable in terms of shape and materials size. (INOX, IRON, ALUMINIUM and PLASTIC also customizable with company logos).

PROTECTION: IP40, IP65.

Armored heating elements with stainless steel pipe*. Development up to 8.00 m.

Resistive internal filament** insulated with MAGNESIUM OXIDE of first choice.

________________________________

* For ACIDS etc. see specific category: ‘Resistance-with-protection-for-aggressive solutions‘.

AISI defined according to the type of use.

** Iron-chromium-aluminium alloy (FeCrAl). DIAMETER and TYPE defined according to the type of use.



Categories: Armored flange heaters, Armored heaters, Heaters
