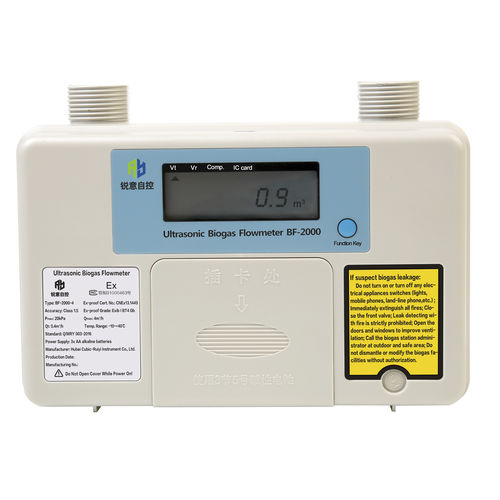

Ultrasonic flow meter BF-2000

volumebiogas

Introduction BF-2000 Residential Gas Meter is a pre-paid type gas meter embedded with Cubic’s ultrasonic gas module which have self-owned intellectual property. It is suitable to be used in community biogas projects that supplying biogas to families directly for cooking, and some other small scale biogas applications. Features • Digital display, functional and intuitive. • No moving part, corrosion resistant, low-pressure loss. • Ultrasonic technology, high precision, long lifetime, stable performance. • No special maintenance for long time operation. • All-in-one detect probe, measure flow velocity, temperature and composition directly. • “One card to one flow meter ” and reliable encryption system ensures user’s interests. • Automatic detection and warning to clear water soaked in flow meter in time. • Highly integrated, small size, good looking, and easy installation. • Low power consumption. The battery can support more than 1 year of operation. Specifications Flow range (m3/h): (0.08-4)m3/h Accuracy: Class 1.5 Repeatability: 0.3% Work temperature: -10~40℃ Humidity: ≤99% Gas pressure: ≤20kPa Corrosion resistance: Yes Power supply: 3AA alkaline battery (working time >1 year) Communication: IC card Connection type: Screw thread Applications Small biogas anaerobic digester Biogas research Residential use
