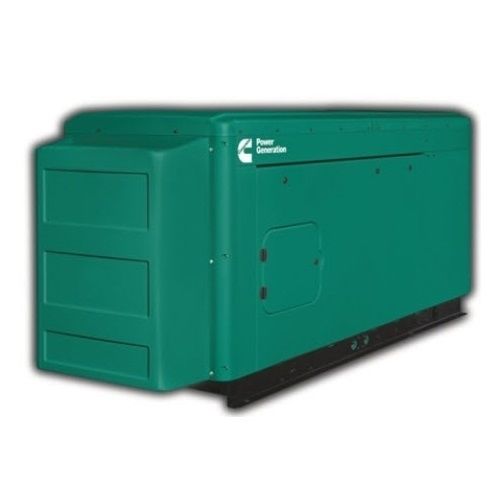

LPG generator set QSJ2.4G

natural gasthree-phasestationary

Product overview

• Gas engine - Rugged 4-cycle QSJ2.4G spark-ignited engine delivers reliable standby power. Electronic air/fuel ratio control optimizes engine performance and provides fast response to load changes.
• Alternator - Multiple alternator sizes offer selectable motor-start capability with low-reactance 2/3-pitch windings, low waveform distortion under non-linear loads and fault-clearing short-circuit capability.
• Control system - The PowerCommand® 1.1 electronic control is standard equipment and provides full generator-set system integration including automatic remote start/stop, precise frequency and voltage regulation, alarm and status message display, output metering, auto-shutdown on fault detection and NFPA 110 Level 1 compliance.
• Cooling system - Standard cooling package supports reliable operation at ambient temperatures up to 50 °C (122 °F).
• Enclosures - Aluminum enclosure with durable powder-coat finish for corrosion resistance; engineered for low sound; removable panels and service doors allow easy access for maintenance; designed to withstand winds up to 150 MPH.
• NFPA - Accepts full rated load in a single step per NFPA 110 Level 1 requirements.

Highlights
Frequency | 60 Hz

Rated for | kW | kVA
Standby | 20 - 60 | 25 - 75

Certification
EPA+

Product Availability
North America

Applications
Commercial industrial standby power

Available generator model configurations (selection shown on page)
Generator model | Hz | Standby kW / kVA | Fuel Type | Availability | Engine model | Rating | Cert
C20N6 | 60 | 20 / 25 | Natural Gas | North America | QSJ2.4 | Standby | E.U./EPA applications
C25N6 | 60 | 25 / 31 | Propane / Natural Gas (variants) | North America | QSJ2.4 | Standby | E.U./EPA applications
C30N6 | 60 | 30 / 38 | Natural Gas | North America | QSJ2.4 | Standby | E.U./EPA applications
C36N6 | 60 | 36 / 45 | Natural Gas / Propane | North America | QSJ2.4 | Standby | E.U./EPA applications
C40N6 | 60 | 40 / 50 | Natural Gas | North America | QSJ2.4 | Standby | E.U./EPA applications

Notes
Multiple model variants and regional spec sheets are available for different markets and fuel options. Control, alternator and enclosure choices provide flexibility for commercial and industrial standby power applications.
