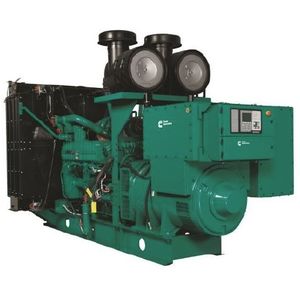

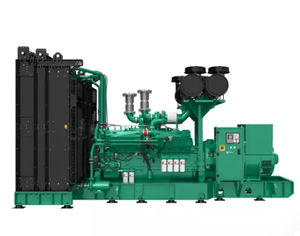

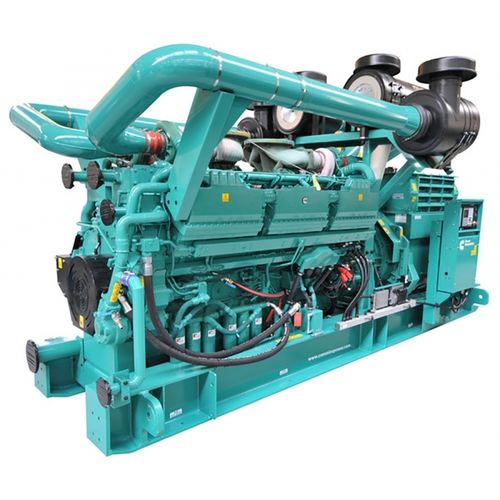

Diesel generator set QSK78three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Applications
- industrial
- Options and accessories
- soundproof, EU IIIA emissions-compliant
- Emissions level
- Tier 2
- Power in kVA
Max.: 31,250 kVA
(42,488.16 hp)Min.: 2,000 kVA
(2,719.24 hp)- Rated capacity
Max.: 2,500 kW
(3,399.1 hp)Min.: 1,600 kW
(2,175.4 hp)- Width
1,360 mm
(54 in)- Height
1,874 mm, 2,325 mm
(73.78 in, 91.54 in)- Weight
2,174 kg, 3,730 kg
(4,792.85 lb, 8,223.24 lb)
Description
This Cummins® commercial generator set is a fully integrated power generation system, providing optimum performance, reliability, and versatility for stationary standby, prime power, and continuous duty applications.
Design: 4 cycle, V, turbo charged and low temperature after-cooled
Bore: 170
Stroke: 190
Displacement: 77.6 L (4735 in3)
Cylinder block: Cast iron, 18 cylinder
Battery capacity: 1400 A
Battery charging alternator: 55 amps
Starting voltage: 24-volt, negative ground
Fuel system: Direct injection: number 2 diesel fuel, fuel filter, automatic electric fuel shutoff
Fuel filter: Triple element, 10 micron filtration, spin on fuel filter with water separator
Air cleaner type: Dry replaceable element
Lube oil filter type(s): Four spin-on, combination full flow and bypass filters
Cooling system: 104 ºF (40 ºC) ambient
