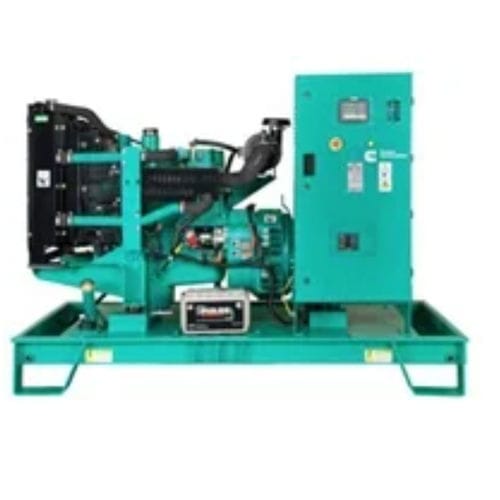

Diesel generator set S3.8

three-phasestationary50 Hz

Overview

• Cummins® medium‑duty engine — robust 4‑stroke industrial diesel engine delivering reliable power and fast response to load changes.
• Alternator — low‑reactance 2/3‑pitch windings, low waveform distortion with non‑linear loads, short‑circuit clearing capability and Class H insulation.
• Cooling system — standard integrated set‑mounted radiator system designed and tested for rated ambient temperatures to simplify plant design for rejected heat.
• Control system — PowerCommand® electronic controller as standard, providing full genset integration including automatic remote start/stop and alarm/status messaging.
• Enclosures — optional weatherproof and acoustic enclosures available.
• Warranty — product warranty provided (see warranty information on the product page).

Highlights
Frequency: 50, 60 Hz

Ratings (Hero)
Rated (Prime) | kW | kVA
Range: 32 - 54 kW | 40 - 67 kVA

Rated (Standby) | kW | kVA
Range: 35 - 60 kW | 44 - 75 kVA

Certifications
Not applicable

Stock availability (Deployment regions)
Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America

Applications

• Commercial and industrial power generation

Genset models and ratings
Model | Hz | Prime kW / kVA | Standby kW / kVA | Fuel type
C44 D5 | 50 | 32 / 40 | 35 / 44 | Diesel
C40 D6 | 60 | 36 / 45 | 40 / 50 | Diesel
C55 D5 | 50 | 40 / 50 | 44 / 55 | Diesel
C50 D6 | 60 | 45 / 56 | 50 / 62 | Diesel
C66 D5 | 50 | 48 / 60 | 52 / 66 | Diesel
C60 D6 | 60 | 54 / 67 | 60 / 75 | Diesel

Technical features / specifications

• Engine: Cummins® medium‑duty, robust 4‑stroke industrial diesel engine.
• Alternator: low‑reactance 2/3‑pitch winding, low waveform distortion, short‑circuit clearing capability, Class H insulation.
• Cooling system: integrated set‑mounted radiator designed and tested for rated ambient conditions.
• Control: PowerCommand® electronic controller (remote automatic start/stop, alarm and status messaging).
• Enclosures: optional weatherproof and sound‑attenuated enclosures available.
• Frequency: available for 50 Hz and 60 Hz operation.
• Output range (Prime): 32–54 kW (40–67 kVA).
• Output range (Standby): 35–60 kW (44–75 kVA).
• Fuel: Diesel.
• Available regions: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America.
