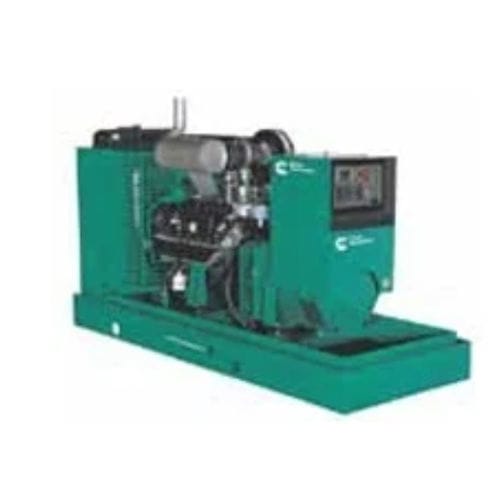

Diesel generator set Ford V10 6.8L

gasthree-phasestationary

Specifications

• Engine: Ford V10 6.8L heavy-duty gas engine, 4-cycle, spark-ignited with electronic air/fuel ratio control for optimized performance and fast response to load changes.
• Alternator: Multiple alternator sizes available with selectable motor starting capability, low‑reactance 2/3‑pitch windings, low waveform distortion under non-linear loads and fault‑clearing short‑circuit capability.
• Control system: PowerCommand® electronic control — automatic remote start/stop, precise frequency and voltage regulation, alarm and status display, AmpSentry™ protection, output metering, automatic shutdown on fault, NFPA 110 Level 1 compliance.
• Cooling system: Standard cooling package rated for continuous operation up to 40 °C (104 °F) ambient.
• Enclosures: Optional weather‑protective and sound‑attenuated enclosures available.
• Certifications: EPA+; warranty information available.

Highlights
Frequency: 60 Hz
Rated for (Standby): 60 - 75 kW | 75 - 94 kVA
Certification: EPA+
Product Availability: Africa Middle East, Asia Pacific, Europe, India, Latin America, North America

Genset models and ratings
Generator model | Hz | Standby kW / kVA | Fuel type | Cert
GGHE | 60 | 60 / 75 | NG/Propane | EPA+
GGHF | 60 | 70 / 88 | Natural Gas | EPA+
GGHF | 60 | 75 / 94 | Propane | EPA+

Applications

• Commercial industrial generators

Technical specifications

• Engine: Ford V10 6.8L gas, 4‑cycle, spark‑ignited with electronic air/fuel ratio control.
• Alternator: Multiple sizes; selectable motor starting capability; low‑reactance 2/3‑pitch windings; low waveform distortion with non‑linear loads; short‑circuit fault clearing.
• Control: PowerCommand® electronic control providing remote start/stop, precise frequency/voltage regulation, alarm/status display, AmpSentry™ protection, output metering, auto‑shutdown on fault; NFPA 110 Level 1 compliant.
• Cooling: Standard package rated to operate reliably up to 40 °C (104 °F) ambient.
• Enclosures: Optional weather‑protective and sound‑attenuated enclosures available.
• Certifications: EPA+; genset accepts full rated load in a single step per NFPA 110 Level 1.
• Frequency: 60 Hz
• Genset models (standby): GGHE — 60 kW / 75 kVA (NG/Propane); GGHF — 70 kW / 88 kVA (Natural Gas); GGHF — 75 kW / 94 kVA (Propane).
• Applications: commercial and industrial generator installations.
