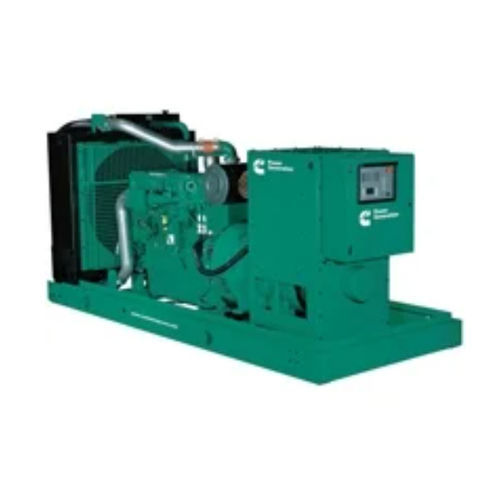

Diesel generator set QSX15 three-phasestationary50 Hz
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Phase
- three-phase
- Portability
- stationary
- Frequency
- 50 Hz, 60 Hz
- Fuel System
- direct fuel injection
- Cooling system
- air-cooled
- Applications
- industrial
- Options and accessories
- soundproof, EU IIIA emissions-compliant
- Emissions level
- Stage II, Tier 2
- Power in kVA
364 kVA, 400 kVA, 569 kVA, 625 kVA
(494.9 hp, 543.85 hp, 773.62 hp, 849.76 hp)- Rated capacity
291 kW, 320 kW, 455 kW, 500 kW
(395.6 hp, 435.1 hp, 618.6 hp, 679.8 hp)- Rotational speed
1,800 rpm
(11,310 rad.min-1)- Width
1,500 mm, 1,553 mm
(59.1 in, 61.1 in)- Height
2,066 mm, 2,447 mm
(81.34 in, 96.34 in)- Weight
4,130 kg, 5,363 kg, 5,580 kg
(9,105.09 lb, 11,823.39 lb, 12,301.79 lb)
Description
Overview
Highlights
Rated for (kW / kVA) - summary table
Generator models (selected rows)
Notes
Technical specifications
- Engine family: QSX15 — industrial 4-cycle diesel engine designed for commercial and industrial generator sets, delivering regulated power with low emissions and fast load response.
- Alternator options: multiple alternator sizes with selectable motor starting capability, low-reactance 2/3 pitch windings and low waveform distortion with non-linear loads.
- PMG option: permanent magnet generator available to enhance motor starting and short‑circuit fault clearing capability.
- Control system: PowerCommand® electronic control provides system integration including automatic remote start/stop, precise frequency and voltage regulation, alarm and status display, AmpSentry™ protection, output metering, auto-shutdown on fault and NFPA 110 Level 1 compliance.
- Cooling: standard integral set‑mounted radiator system engineered and tested for rated ambient temperatures.
- Enclosures and fuel tanks: optional weather-protective and sound-attenuated enclosures; optional dual-wall sub-base fuel tanks.
- Certifications and availability: configurations available to meet EPA Tier 2 and EU Stage II; regional availability across Africa & Middle East, Asia Pacific, Europe, India, Latin America and North America.
Highlights
- Frequency: 50 Hz and 60 Hz
- Certification: EPA Tier 2, EU Stage II (configuration dependent)
- Typical applications: Prime, Standby, Data Center Continuous
- Regional availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
Rated for (kW / kVA) - summary table
- Prime: 291 – 455 kW | 364 – 569 kVA
- Standby: 320 – 500 kW | 400 – 625 kVA
- Data Center Continuous: 410 – 455 kW | 563 – 569 kVA
Generator models (selected rows)
- C400 D5e — 50 Hz — Prime 291 kW / 364 kVA — Standby 320 kW / 400 kVA — Diesel — EU Stage II
- C450 D5e — 50 Hz — Prime 327 kW / 409 kVA — Standby 360 kW / 450 kVA — Diesel — EU Stage II
- C500 D5 / C500 D5e / C500 D6 — 50 Hz — Prime ~360–364 kW / 450–455 kVA — Standby 400 kW / 500 kVA — Diesel
- C550 D5 / C550 D5e — 50 Hz — Prime 400 kW / 500 kVA — Standby 440 kW / 550 kVA — Diesel
- C450 D6e / C450 D6 / C500 D6 (60 Hz) — Prime ~409–455 kW / ~511–568 kVA — Standby up to 500 kW / 625 kVA — Diesel — EPA Tier 2 (selected rows)
- DFEK / DFEJ — 60 Hz — Prime 455 / 410 kW | 569 / 513 kVA — Standby 500 / 450 kW | 625 / 563 kVA — Data Center Continuous where specified — Diesel — QSX15-G9 NONROAD 2 on selected configurations — Wide regional availability
Notes
- Power ranges and ratings vary by generator model and selected application (Prime, Standby, Data Center Continuous).
- Multiple configurations exist to match regional certification and application requirements.
Technical specifications
- Engine family: QSX15 (Cummins® industrial diesel)
- Control: PowerCommand® electronic control with remote start/stop, frequency and voltage regulation, alarms, AmpSentry™ protection, output metering and NFPA 110 Level 1 compliance
- Alternator options: selectable sizes, low-reactance 2/3 pitch windings, low waveform distortion, short-circuit fault clearing capability
- PMG: permanent magnet generator option for enhanced motor starting and fault clearing
- Cooling: integral set-mounted radiator system rated for specified ambient temperatures
- Enclosures: optional weather-protective and sound-attenuated enclosures
- Fuel tanks: optional dual-wall sub-base tanks
- Frequencies: 50 Hz and 60 Hz
- Certifications: EPA Tier 2, EU Stage II (configuration dependent)
- Fuel type: Diesel
- Regional availability: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
