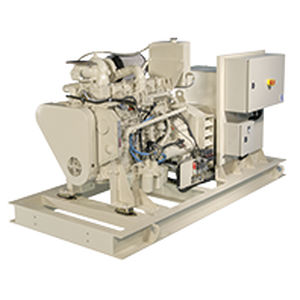

Diesel generator set 6B-CP

three-phasestationary50 Hz

Overview
Marine generator set 6B-CP delivering 74–99 kWe. Cummins diesel engines matched to STAMFORD alternators and packaged for marine use with multiple cooling configurations and flexible integration options.

• Cummins diesel engines paired with industry-leading STAMFORD alternators for matched performance
• Designed for marine environments with durability and high operational availability
• Simplified vessel integration with reduced mechanical interfaces
• Optional multi-station alarm and monitoring panels via local digital network
• Integrated alarm system configurable to communicate with ship central data systems
• Flexible configurations to match vessel operating requirements
• Comprehensive global warranty covering the complete generating set
• Packaged at G&M Tex Ltd, Ipswich, U.K.

Features & Benefits
Engine Features

• In-line six-cylinder turbocharged diesel engine (mechanical fuel system) providing fuel-efficient operation and low maintenance; optional electronic speed governor
• Available cooling options: heat exchanger, keel cooler or set-mounted radiator
• Radiator configurations include independent start system not reliant on ship start systems or starter-exchange methods
• Meets SOLAS surface temperature requirements and classifiable for Unmanned Machinery Space (UMS) per IACS rules
• Classification Society type approvals available
• Classed units fitted with extruded aluminium wiring harness, duplex filtration and type-approved hardware

Alternator Features

• 12-wire, 3-phase alternator with a range of re-connectable outputs
• Engineered for marine service with IP23 rating
• Single-bearing close-coupled permanent magnet generator for consistent excitation
• Standard 2/3 pitch windings to avoid excessive neutral currents
• Classifiable for UMS applications per IACS rules
• Dynamically balanced rotors with sealed-for-life ball bearings
• Integrated anti-condensation heaters and dual thermistor sets

Dimensions & Weight (selected configurations)
Overall Length — mm (in) — KC & HX: 2240 (88) — RAD: 2320 (91)
Overall Width — mm (in) — KC & HX & RAD: 1250 (49)
Overall Height — mm (in) — KC & HX: 1270 (50) — RAD: 1280 (50)
Overall Weight — kg (lb) — KC & HX: 1270 (2800) — RAD: 1370 (3020)

Ratings
Generator model: 6B-CP — Installation data: MG-90437a — Frequency: 50 Hz — Prime kW / kVA: 80 / 100 — Voltage: 380 | 400 | 415
Generator model: 6B-CP — Installation data: MG-90438a — Frequency: 60 Hz — Prime kW / kVA: 99 / 124 — Voltage: 416 | 440 | 460 | 480
Generator model: 6B-CP — Installation data: MG-90437b — Frequency: 50 Hz — Prime kW / kVA: 74 / 93 — Voltage: 380 | 400 | 415
Generator model: 6B-CP — Installation data: MG-90438b — Frequency: 60 Hz — Prime kW / kVA: 92 / 115 — Voltage: 416 | 440 | 460 | 480

Technical specifications

• Engine model: 6BT5.9-D(M)
• Alternator: STAMFORD UCM274E
• Power range (selected ratings): 74 - 99 kWe
• Frequencies: 50 Hz and 60 Hz
• Typical voltages: 380 | 400 | 415 | 416 | 440 | 460 | 480
• Cooling/configurations: KC & HX configurations; RAD (radiator) configuration
• Dimensions (KC & HX vs RAD): Length 2240 mm vs 2320 mm; Width 1250 mm; Height ~1270–1280 mm
• Weights (approx): 1270 kg (KC & HX); 1370 kg (RAD)
• Marine features: IP23 alternator rating, SOLAS surface temperature conformity, classifiable for UMS
• Packaging: Packaged at G&M Tex Ltd, Ipswich, U.K.

Availability
Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
