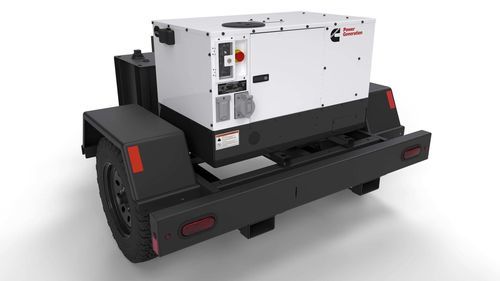

Diesel generator set C12D6RE

single-phaseportable60 Hz

Overview
The C12D6RE from Cummins Rental Power Solutions is a compact diesel rental generator delivering 12 kW standby and 10.8 kW prime power at 60 Hz. It is designed for rental operations and portable-power requirements in construction, events and entertainment, combining a weatherproof enclosure with sound control for outdoor use.

Features & Benefits

• Model and rating: The C12D6RE delivers 12 kWe Standby & 10.8 kWe Prime at 60 Hz
• Weatherproof enclosure: Designed to withstand heavy airborne dust and provide reliable genset operation in high humidity and extreme ambient temperatures from -20°F (-29°C) to 120°F (49°C)
• Optimal serviceability: Single-side door for fast and easy service access
• Self-diagnostics capabilities: Integrated diagnostics simplify troubleshooting and include maintenance reminders
• Ideal for quiet jobsites: Sound-controlled housing encloses the cooling system and muffler to reduce noise
• Clean power: Meets U.S. EPA Tier 4 Final requirements; certified on a 1.499 L, 4-cycle, liquid-cooled diesel engine with in-line pump
• Service support: Designed for rental operations with serviceability and parts support considerations

Highlights (frequency and ratings)
Frequency: 60 Hz
Rated for | kW | kVA
Prime | 10.8 | 10.8
Standby | 12 | 12

Regional availability
Product availability: North America

Technical specifications

• Model: C12D6RE
• Prime rating: 10.8 kW / 10.8 kVA (60 Hz)
• Standby rating: 12 kW / 12 kVA (60 Hz)
• Frequency: 60 Hz
• Fuel type: Diesel
• Emission levels: U.S. EPA, Nonroad (Portable) Application; U.S. EPA Tier 4 Final certified
• Engine: 1.499 L, 4-cycle, liquid-cooled diesel engine with in-line pump
• Enclosure: Weatherproof enclosure designed for heavy airborne dust and high humidity
• Ambient temperature capability: -20°F (-29°C) to 120°F (49°C)
• Noise control: Sound-controlled housing enclosing cooling system and muffler for quiet operation
• Service access: Single-side door for fast and easy service access
• Controls & diagnostics: Integrated self-diagnostics and maintenance reminder capabilities
• Intended applications: Rental power, construction, events, entertainment and similar portable-power needs
