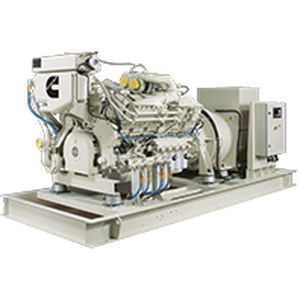

Diesel generator set K38-CP

three-phasestationary50 Hz

Overview

• Prime power range: 764–920 kW (955–1150 kVA)
• Cummins KTA38-D(M1) diesel engine matched to STAMFORD PM734B alternator for marine applications
• Engineered for continuous operation in marine environments with simplified vessel integration
• Available with local digital multi-station alarm and monitoring panels; integrated alarms can interface with ship central data systems
• Flexible configurations and packaging to meet vessel requirements; packaged at G&M Tex Ltd, Ipswich, U.K.
• Comprehensive global warranty covering the complete generating set

Features & Benefits

Engine Features

• V12 turbocharged diesel with electronic governing for improved fuel economy and reduced maintenance; optional hydraulic backup governor
• Cooling options: heat exchanger or keel cooled
• Meets SOLAS surface temperature limits and classifiable for Unmanned Machinery Space (UMS) per IACS rules
• IMO emissions certified via Lloyd’s Register; classification society type approvals available
• Classed units include aluminum extruded wiring harness, duplex filtration and type-approved hardware

Alternator Features

• 6-wire, 3-phase alternator offering multiple reconnectable outputs
• Marine-specific design with IP23 rating
• Twin-bearing close-coupled permanent magnet generator (PMG) for stable excitation
• 2/3 pitch windings to limit neutral currents
• Classifiable for UMS applications per IACS rules
• Dynamically balanced rotors with sealed-for-life bearings, integrated anti-condensation heaters and two RTDs

Highlights
Frequencies supported: 50 Hz, 60 Hz
Certifications: IMO Tier I, IMO 2; Lloyd’s Register emissions certification available
Markets: Africa & Middle East, Asia Pacific, Europe, India, Latin America, North America
Typical applications: marine generator sets for commercial and offshore vessels


Rated for (summary)

• Prime power (kW): 764 – 920
• Prime power (kVA): 955 – 1150

Selected Ratings (examples, generator model K38-CP)

• 50 Hz — Prime 764 kW / 955 kVA — Cert: IMO Tier I — Voltage: 380 V
• 50 Hz — Prime 804 kW / 1005 kVA — Cert: IMO Tier I — Voltage: 400 V
• 50 Hz — Prime 832 kW / 1040 kVA — Cert: IMO Tier I — Voltage: 415 V
• 50 Hz — Prime 845 kW / 1056 kVA — Cert: IMO Tier I — Voltage: 440 V
• 60 Hz — Prime 888 kW / 1110 kVA — Cert: IMO Tier I — Voltage: 416 V
• 60 Hz — Prime 920 kW / 1150 kVA — Cert: IMO Tier I — Voltage: 440 / 460 / 480 V

Product Dimensions and Weight

• Typical overall dimensions (L×W×H): 4500 × 1900 × 2100 mm (177 × 74 × 82 in)
• Typical overall weight: 8200 kg (18078 lb)
• Dimensions and weight may vary with selected engine and configuration

Technical specifications

• Engine model: Cummins KTA38-D(M1)
• Alternator: STAMFORD PM734B (PMG, 6-wire, IP23)
• Prime power range: 764–920 kW (955–1150 kVA)
• Frequencies: 50 Hz / 60 Hz
• Voltage options: 380, 400, 415, 440, 460, 480 V (depending on rating)
• Cooling: heat exchanger or keel cooled
• Compliance: SOLAS surface temperature, classifiable for UMS (IACS), IMO emissions certified (Lloyd’s Register), IMO Tier I
• Packaged at: G&M Tex Ltd, Ipswich, U.K.
