Diesel generator set Centum™

three-phasestationary60 Hz

Overview

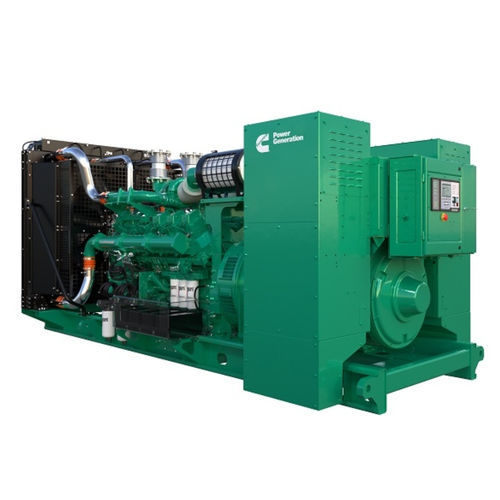

Centum Series diesel generator sets C1250D6E / C1500D6E deliver high power density and configurability for industrial and data center applications. Designed for 60 Hz operation, they provide rated power with a reduced footprint to lower installation and fuel costs.

Highlights

• Frequency: 60 Hz
• Rated power (kW / kVA):
  Prime — 1136 - 1364 kW / 1420 - 1705 kVA
  Standby — 1250 - 1500 kW / 1563 - 1875 kVA
  Data Center Continuous — 1136 - 1364 kW / 1420 - 1705 kVA
• Certification: EPA Tier 2 (upgradeable to Tier 4)
• Product availability: North America

Key features

• Configurable power system to match application requirements and maximize power density.
• Robust transient performance with rapid recovery from large load swings.
• Cummins heavy-duty diesel engines (QSK38 variants) for reliable response and low emissions.
• Multiple alternator options including low-reactance windings and PMG excitation for improved motor starting and fault clearing.
• Compatibility with paraffinic fuels (EN15940), including HVO, for reduced lifecycle GHG emissions.
• PowerCommand® digital control with AmpSentry™ protective relay, metering and remote start/stop functionality.
• Set-mounted radiator and charged air-cooled intake manifolds designed for rated ambient conditions.
• Optional monitoring: i-Relay, RTDs, low coolant sensor and electronic restriction indicators.

Applications

• Standby power
• Healthcare
• Data centers
• Water and wastewater treatment
• Agriculture

Industries
Mission-critical | Commercial & infrastructure | Industrial | Healthcare | Commercial property, retail & hospitality | Manufacturing | Data centers | Transportation infrastructure | Agriculture | Wastewater treatment | Public and government infrastructure

Service & support
Cummins offers global aftermarket support including a worldwide dealer network, parts distribution and a 3-year comprehensive warranty to support deployment, maintenance and service of the Centum C1250D6E / C1500D6E.

Technical specifications

• Series: Centum™ Series
• Frequency: 60 Hz
• Fuel type: Diesel (approved for EN15940 paraffinic fuels, including HVO)
• C1500D6E — Prime: 1364 kW / 1705 kVA; Standby: 1500 kW / 1875 kVA; Data Center Continuous: 1364 kW / 1705 kVA
• C1250D6E — Prime: 1136 kW / 1420 kVA; Standby: 1250 kW / 1563 kVA; Data Center Continuous: 1136 kW / 1420 kVA
• Engine models: QSK38-G18 (C1500D6E), QSK38-G17 (C1250D6E)
• Control: PowerCommand® digital control with AmpSentry™ protective relay and output metering
• Excitation: PMG option
• Cooling: Charged air-cooled intake manifolds; set-mounted radiator options
• Emissions/certification: EPA Tier 2 (options up to Tier 4)
• Warranty: 3-year comprehensive warranty
