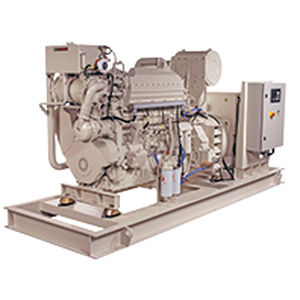

Diesel generator set K19-CP

three-phasestationary50 Hz

Product overview
335-460 kWe

• Cummins high-performance diesel engines matched to industry-leading alternators; designed, integrated and assembled for optimal performance and efficiency.
• Built for demanding marine environments — high durability and availability.
• Simplified integration into vessels with reduced mechanical connection complexity.
• Available with multi-station alarm and monitoring panels over a local digital network to suit different applications.
• Integrated alarm system configurable to communicate with the vessel's central data systems.
• Flexible configurations allow tailoring of the generator set to vessel operational requirements.
• Comprehensive worldwide warranty covering the complete generator set.
• Packaged by G&M Tex Ltd in Ipswich, UK.

Features and benefits
Engine features

• Durable inline six-cylinder turbocharged diesel engine with mechanical fuel system — low fuel consumption and reduced maintenance; optional electronic governing.
• Available cooling configurations: heat exchanger or keel cooling.
• Meets SOLAS surface temperature requirements; suitable for Unmanned Machinery Space (UMS) per IACS rules.
• IMO emissions certified by Lloyd's Register; type approvals available from classification societies.
• High-grade components with extruded aluminium wiring looms, dual filtration and approved fittings.

Alternator features

• 12-lead, 3-phase alternator offering a wide range of reconnectable outputs.
• Marine-design protection rating IP23.
• Single-bearing, permanent magnet excited unit coupled to the genset to ensure reliable starting under all conditions.
• Standard 2/3 pitch winding to prevent neutral current (reduced circulating current).
• Suitable for UMS per IACS rules; dynamically balanced rotors with lifetime-sealed ball bearings.
• Integrated anti-condensation heaters and two RTD heater sets in classed units.

Power specifications and certifications (selected variants)
Typical base outputs:
335 kW / 419 kVA (50 Hz) — cert.: IMO Tier I — voltages: 380 | 400 | 415 | 440
380 kW / 475 kVA (50 Hz) — cert.: IMO Tier I — voltage: 380 V
390 kW / 488 kVA (50 Hz) — cert.: IMO Tier I — voltages: 400 | 415 | 440
400 kW / 500 kVA (60 Hz) — cert.: IMO Tier I — voltages: 416 | 440 | 460 | 480
450 kW / 563 kVA (60 Hz) — cert.: IMO Tier I — voltage: 416 V
460 kW / 575 kVA (60 Hz) — cert.: IMO Tier I — voltages: 440 | 460 | 480

Engine and alternator model
Engine model: KTA19-D(M1)
Alternator: STAMFORD HCM534E

Dimensions and weight (typical, may vary by configuration)
Overall length — 3500 mm (137 in)
Overall width — 1540 mm (60 in)
Overall height — 2100 mm (82 in)
Gross weight — 4100 kg (9039 lb)

Availability and applications
Intended use: marine industry — generator sets
Geographical availability: Africa, Middle East, Asia & Pacific, Europe, India, Latin America, North America
