Bending beam load cell LC-4103 series
single-pointstrain gauge1 mV/V

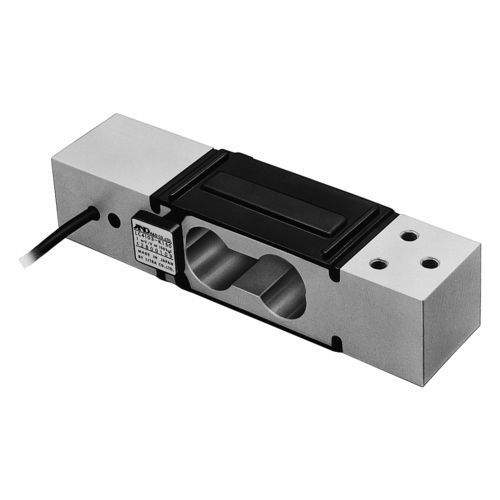

Bending beam load cell - LC-4103 series - A&D COMPANY, LIMITED - single-point / strain gauge / 1 mV/V
Bending beam load cell - LC-4103 series - A&D COMPANY, LIMITED - single-point / strain gauge / 1 mV/V
Add to favorites
Compare this product
Go to the A&D COMPANY, LIMITED website for more information

Characteristics

Type
bending beam
Form
single-point
Technology
strain gauge
Output signal
1 mV/V
Applications
weighing, for hopper, for mixers, for bagging machines, for dosing
Other characteristics
precision, compact, aluminum, temperature-compensated
Rated force

100 N, 1,470.9 N

Min.: 600 N

Max.: 1,500 N

Rated load

Min.: 61.2 kg
(134.92 lb)

Max.: 153 kg
(337.31 lb)

Length

210 mm
(8.268 in)

Height

51 mm
(2.01 in)

Description

Parallelogram-type construction 400 × 600 mm platforms can be used Temperature compensation maintains both zero and span from -10 °C to +40 °C (+14 °F to +104 °F) Deadweight up to 80% of capacity. Load weight and deadweight up to 180% of capacity Moisture proof Compact and lightweight
