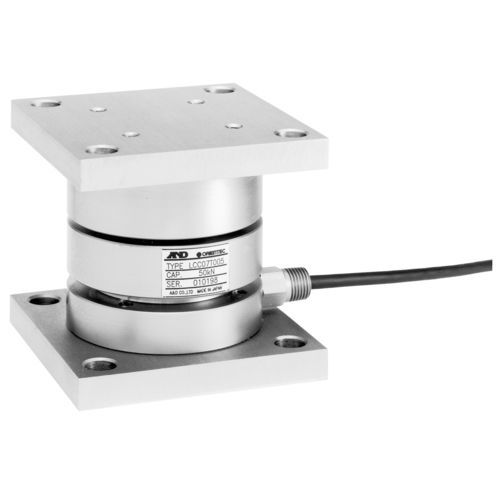

Compression load cell LCC07 seriescanisterstrain gauge2 mV/V
Add to favorites
Compare this product
Characteristics
- Type
- compression
- Form
- canister
- Technology
- strain gauge
- Output signal
- 2 mV/V
- Applications
- weighing, for hopper, for silo, for mixers, for bagging machines, for dosing
- Other characteristics
- stainless steel, precision, with mounting flanges, IP67, hermetic, hermetically-sealed
- Rated force
Max.: 50 kN
Min.: 5 kN
- Rated load
Max.: 5,100 kg
(5.62 lb)Min.: 509.9 kg
(1,124.14 lb)- Length
100 mm
(3.937 in)- Height
95 mm
(3.74 in)
Description
Features
Stainless steel housing ideal for using in the food/chemical industry
Rocking absorption type
Designed for tanks and hoppers
Compression typed
