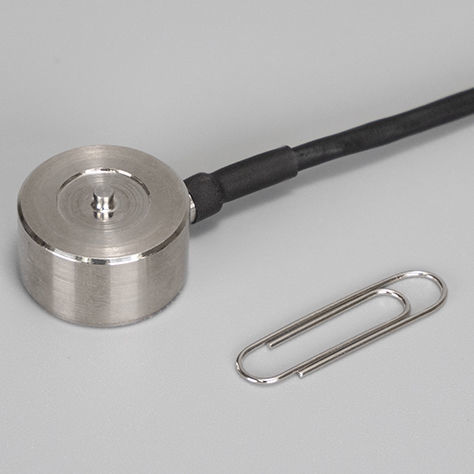

Compression load cell LCC32

button typestainless steelcompact

Product Overview: Small and Lightweight Compression Load Cell for Force Measurement. Features: - Diameter: 20 mm - Height: 13 mm - Rated capacity: 200 N to 5 kN - Ideal for: Installation in restricted spaces due to its compact size - Typical applications: - Pressure Control of Resistance Welding Machines - Button switch pressure measurement - Keyboard inspection - Tablet press pressure measurement - Press machine pressure measurement - Spring pressure measurement - Force sensor for robots - Load sensor for robots - Force measurement for fitness equipment Specifications: - Model: LCC32-N200, LCC32-N500, LCC32-KN002, LCC32-KN005 - Rated capacity (R.C.): 200 N (20.39 kg), 500 N (50.99 kg), 2 kN (203.9 kg), 5 kN (509.9 kg) - Deflection amount: 0.01 mm, 0.02 mm, 0.03 mm - Natural frequency: 44 kHz, 48 kHz - Rated output (R.O.): 1 mV/V ±20 % - Safe overload: 150 % R.C. - Combined error: 0.5% R.O. - Non-linearity: 0.3 % R.O. - Hysteresis: 0.3 % R.O. - Repeatability: 0.2 % R.O. - Zero balance: ±10 % R.O. - Temperature compensation range: 0 °C to 50 °C - Allowable temperature range: -10 °C to 60 °C - Recommended excitation voltage: 5 to 12 VDC - Maximum excitation voltage: 15 VDC - Input terminal resistance: 1 kΩ ± 0.1 kΩ - Output terminal resistance: 1 kΩ ± 0.01 kΩ - Insulation resistance: Greater than 500 MΩ at 50 VDC - Temperature effect on zero point: 0.1 % R.O. / 10 °C - Temperature effect on span: 0.1 % Load / 10 °C Typ. - Cable: φ3, length 0.3 m - Material: Stainless steel - Weight: Approx. 23 g Technical characteristics / specifications: - Miniature compression button load cell - Small and lightweight - Rated capacity: 200 N to 5 kN - Diameter: 20 mm - Height: 13 mm - Material: Stainless steel - Weight: Approx. 23 g - Deflection: 0.01–0.03 mm depending on model - Natural frequency: 44–48 kHz - Rated output: 1 mV/V ±20% - Safe overload: 150% R.C. - Combined error: 0.5% R.O. - Non-linearity: 0.3% R.O. - Hysteresis: 0.3% R.O. - Repeatability: 0.2% R.O. - Zero balance: ±10% R.O. - Temperature compensation range: 0–50 °C - Allowable temperature range: -10–60 °C - Recommended excitation voltage: 5–12 VDC - Maximum excitation voltage: 15 VDC - Input terminal resistance: 1 kΩ ±0.1 kΩ - Output terminal resistance: 1 kΩ ±0.01 kΩ - Insulation resistance: >500 MΩ at 50 VDC - Temperature effect on zero point: 0.1% R.O./10 °C - Temperature effect on span: 0.1% Load/10 °C Typ. - Cable: φ3, length 0.3 m
