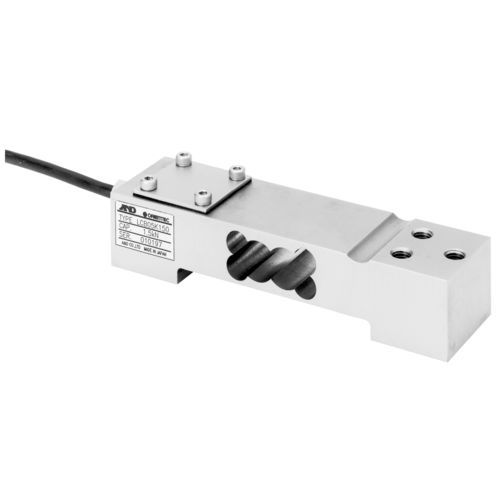

Bending beam load cell LCB05 series
single-pointstrain gauge2 mV/V

Bending beam load cell - LCB05 series - A&D COMPANY, LIMITED - single-point / strain gauge / 2 mV/V
Bending beam load cell - LCB05 series - A&D COMPANY, LIMITED - single-point / strain gauge / 2 mV/V
Add to favorites
Compare this product
Go to the A&D COMPANY, LIMITED website for more information

Characteristics

Type
bending beam
Form
single-point
Technology
strain gauge
Output signal
2 mV/V
Applications
weighing, for hopper, for mixers, for bagging machines, for dosing
Other characteristics
stainless steel, precision, IP67, hermetic, waterproof, hermetically-sealed
Rated force

Max.: 1,500 N

Min.: 300 N

Rated load

Max.: 150 kg
(330.69 lb)

Min.: 30 kg
(66.14 lb)

Length

150 mm
(5.906 in)

Height

40 mm
(1.57 in)

Description

Stainless Steel hermetical sealed structure ideal for application under harsh environment Stainless steel hermetical sealed structure ideal for application under harsh environment Maximum platform size is 400×400mm Calibrated for 4 corner loads Both tension and compression usage
