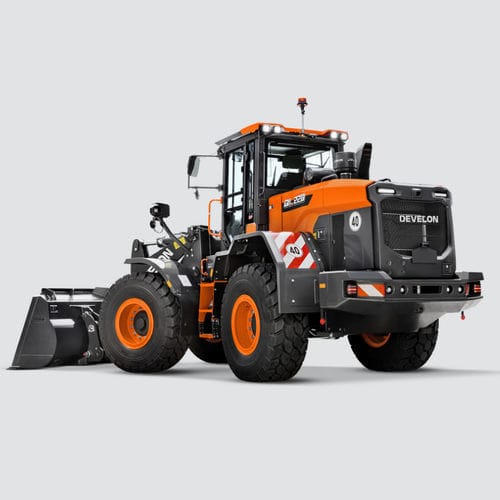

Wheeled loader DL220-7

articulatedlargemining and quarrying

Overview
The DL220-7 is a Stage V wheel loader designed to improve performance, fuel efficiency and the operator environment compared with the previous Stage IV model. It pairs a Develon DL06 Stage V 6-cylinder engine with high breakout force and traction to support heavy loading and material-handling tasks.

Key features

• Stage V Develon DL06, 6-cylinder engine — 119 kW (160 HP)
• High breakout force (97 kN) and strong traction for penetrating compact materials
• Transparent Bucket System with two cameras for combined real-time front view on the cab monitor
• Multiple bucket choices for general purpose, performance and material handling

Key metrics

• Bucket capacity (standard): 2.3 m³
• Tipping load: 10,652 kg
• Static tipping load (40°): 9,383 kg
• Length with bucket: 7,458 mm
• Width with bucket: 2,539 mm
• Height: 3,313 mm
• Dump height (45°, bolt-on cutting edge): 2,784 mm
• Dump reach (45°, bolt-on cutting edge): 1,010 mm
• Wheelbase: 3,050 mm
• Operating weight: 13,198 kg
• Breakout force: 97 kN

Bucket options
Straight side cutter, teeth, width 2550 mm — 2.2 m³
Straight side cutter, bolt-on cutting edge, width 2550 mm — 2.3 m³
Performance bucket - straight side cutter, teeth, width 2550 mm — 2.4 m³
Performance bucket - straight side cutter, bolt-on cutting edge, width 2550 mm — 2.5 m³

Convex side cutter, teeth, width 2550 mm — 2.4 m³
Convex side cutter, bolt-on cutting edge, width 2550 mm — 2.5 m³

Transparent Bucket System
The system records images in front of the loader with two cameras (upper and lower) and displays the combined images in real time on the cab monitor using a curved-projection method, reducing blind spots and improving site safety.

Applications

• Construction and civil engineering
• Quarry and mining support
• Material handling and loading
• Road maintenance and landscaping

More information
The DL220-7 is designed to balance engine power, fuel efficiency and operator comfort to support sustained productivity in heavy loading operations.

Technical specifications

• Model: DL220-7
• Engine: Develon DL06 Stage V (6-cylinder)
• Engine power: 119 kW (160 HP) @ 2100 rpm
• Operating weight: 13,198 kg
• Bucket capacity (standard): 2.3 m³
• Tipping load: 10,652 kg
• Breakout force: 97 kN
• Dimensions (with bucket): L 7,458 mm × W 2,539 mm × H 3,313 mm
