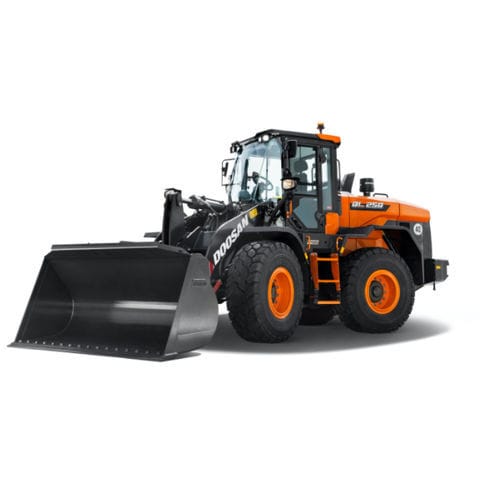

Wheeled loader DL250-7

articulatedhandling

Overview
The DL250-7 Stage V wheel loader features a redesigned upper- and lower-structure that improves performance, fuel efficiency and operator environment compared with the previous Stage IV model. The machine is configured for heavy-duty loading, material handling and high-traction applications.

Smart Productivity
Engineered to maximise on-site productivity, the DL250-7 combines a 128 kW (172 HP) Develon DL06 Stage V engine with high breakout force and traction to speed up digging and loading cycles while maintaining steady performance in demanding conditions.

Performance details
Impressive breakout force and high traction allow the DL250-7 to penetrate compacted materials and maintain productivity across varied tasks. The machine layout and hydraulic design support consistent cycle times for loading and material handling operations.

Transparent Bucket System
The transparent bucket system reduces front blind spots by recording forward images with two cameras (upper and lower) and combining them on the cab monitor using a curved projection method. This improves operator visibility and safety during loading and manoeuvring.

Buckets — General purpose

• Straight side cutter, teeth, width 2740 mm — 2.4 m³
• Straight side cutter, Bolt-on cutting edge, width 2740 mm — 2.5 m³
• Performance bucket - straight side cutter, teeth, width 2550 mm — 2.6 m³
• Performance bucket - straight side cutter, Bolt-on cutting edge, width 2550 mm — 2.7 m³

Buckets — Material handling

• Convex side cutter, teeth, width 2550 mm — 2.6 m³
• Convex side cutter, Bolt-on cutting edge, width 2550 mm — 2.7 m³

Options & Attachments

• Quick couplers and control kits available as options and attachments

Specifications

• Bucket capacity — 2.5 m³
• Tipping load — 11.015 kg
• Static tipping load (at 40°) — 9.809 kg
• Length with bucket — 7.887 mm
• Width with bucket — 2.539 mm
• Height — 3.313 mm
• Dump height (at 45°) with bolt-on cutting edge — 2.762 mm
• Dump reach (at 45°) with bolt-on cutting edge — 1.017 mm
• Wheelbase — 3.050 mm
• Engine — Develon DL06 Stage V (6-cylinder)
• Operating weight — 13.847 kg
• Engine power — 128 kW (172 HP) at 2100 rpm
• Breakout force — 116 kN
