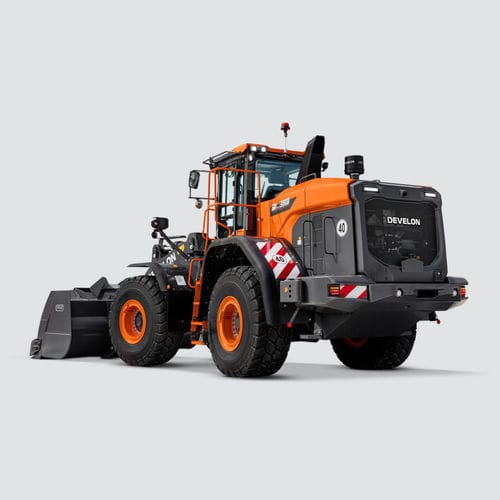

Wheeled loader DL380-7

articulateddiesel

Overview
The DL380-7 Stage V wheel loader features a redesigned structure that improves performance, fuel efficiency and operator environment compared with the previous Stage IV model. The machine is designed for high productivity in loading and penetration of compact materials while providing clear operator visibility and service access.

Key figures

• Model: DL380-7
• Bucket capacity: 3.7 m³
• Tipping load: 16,248 kg
• Static tipping load (at 40°): 14,341 kg

Buckets — General purpose
General purpose
Straight side cutter, teeth, width 3110 mm — 3.7 m³
Straight side cutter, bolt-on cutting edge, width 3110 mm — 3.7 m³
Performance bucket - straight side cutter, teeth, width 2910 mm — 3.9 m³
Performance bucket - straight side cutter, bolt-on cutting edge, width 2910 mm — 4.0 m³

Buckets — Material handling
Material handling
Convex side cutter, teeth, width 2910 mm — 3.9 m³
Convex side cutter, bolt-on cutting edge, width 2910 mm — 4.1 m³

Transparent Bucket System
The Transparent Bucket System reduces front blind spots by recording images with two cameras (upper and lower) and combining them in real time on the cab monitor using a curved projection method. This improves visibility of the work area directly in front of the machine and enhances operator safety.

Options & Attachments

• Quick couplers & control kits

Technical specifications

• Model: DL380-7
• Bucket capacity: 3.7 m³
• Tipping load: 16,248 kg
• Static tipping load (at 40°): 14,341 kg
• Length with bucket: 8,530 mm
• Width with bucket: 3,000 mm
• Height: 3,511 mm
• Dump height (at 45°) with bolt-on cutting edge: 2,887 mm
• Dump reach (at 45°) with bolt-on cutting edge: 1,360 mm
• Wheelbase: 3,300 mm
• Engine: Develon DL08 Stage V (6-cylinder)
• Engine power: 202 kW at 1800 rpm
• Operating weight: 20,269 kg
• Breakout force: 181 kN
