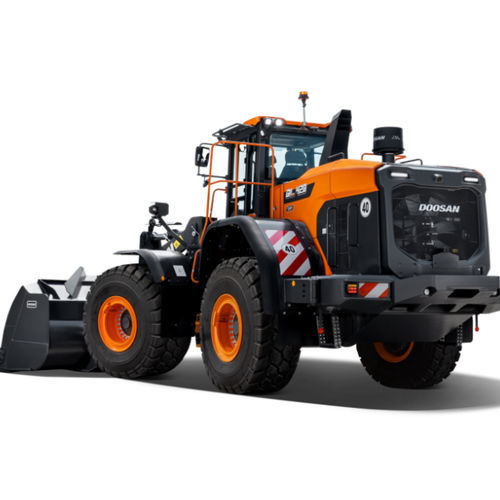

Wheeled loader DL420CVT-7

articulatedlargeoutdoor

Product overview
The DL420CVT-7 is a Stage V wheel loader designed for high productivity in earthmoving and material-handling applications. The machine combines a Scania DC9 Stage V engine with an optimised hydraulic system and redesigned cab and exterior to deliver consistent bucket fill, penetration and cycle efficiency.

Key benefits & features

• Powerful Scania DC9 Stage V (5-cylinder) engine for regulatory compliance and steady torque delivery
• High breakout force (171 kN) and strong traction for penetration in compacted materials
• Optimised hydraulic system for fast cycle times and precise bucket control
• Redesigned cab and exterior to improve operator comfort and visibility

Highlighted machine metrics

• Bucket capacity: 4.5 m³
• Tipping load: 18,696 kg
• Static tipping load (at 40°): 16,493 kg
• Operating weight: 23,990 kg
• Engine power: 240 kW (326 HP) at 1800 rpm

Transparent Bucket System
The Transparent Bucket System reduces front blind spots by capturing front images with two cameras (upper and lower) and combining them with a curved-projection view on the in-cab monitor in real time, improving visibility and safety during loading and manoeuvring.

Bucket options (selection)
General purpose
Straight side cutter, teeth, width 3200 mm — 4.3 m³
Straight side cutter, Bolt-on cutting edge, width 3200 mm — 4.5 m³
Performance bucket - straight side cutter, teeth, width 3000 mm — 4.4 m³
Performance bucket - straight side cutter, Bolt-on cutting edge, width 3000 mm — 4.5 m³

Material handling
Convex side cutter, teeth, width 3000 mm — 4.7 m³
Convex side cutter, Bolt-on cutting edge, width 3000 mm — 4.9 m³

Features / design notes

• Completely updated exterior and cab design for improved operator environment
• High breakout force: 171 kN
• Optimised hydraulic system for quick cycle times and efficient material handling
• Scania DC9 Stage V 5-cylinder engine for power and emissions compliance

Technical specifications

• Commercial designation: DL420CVT-7
• Bucket capacity: 4.5 m³
• Tipping load: 18,696 kg
• Static tipping load (at 40°): 16,493 kg
• Length with bucket: 8,926 mm
• Width with bucket: 3,200 mm
• Height: 3,660 mm
• Dump height (at 45°, with bolt-on cutting edge): 2,990 mm
• Dump reach (at 45°, with bolt-on cutting edge): 1,320 mm
• Wheelbase: 3,525 mm
• Engine: Scania DC9 Stage V (5-cylinder)
• Operating weight: 23,990 kg
• Engine power: 240 kW (326 HP) at 1800 rpm
• Breakout force: 171 kN
