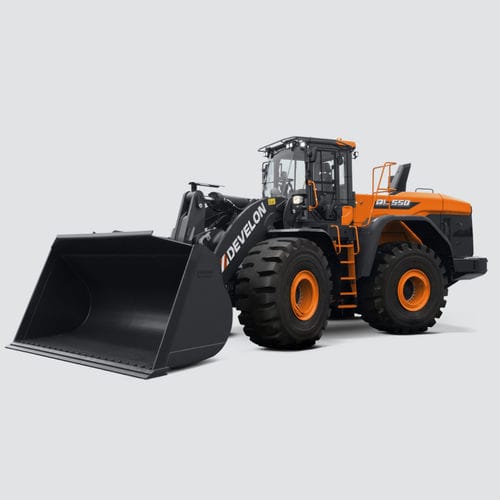

Wheeled loader DL550-7

articulatedfor constructiondiesel

Overview
The new Develon DL550-7 Stage V wheel loader features a redesigned architecture delivering improved performance, better fuel efficiency and an upgraded operator environment compared to the previous Stage IV model.

Key product highlights

• Smart Productivity concept focused on higher performance and fuel efficiency
• Completely redesigned Stage V machine versus the previous Stage IV model
• Exceptional breakout force (230 kN) and high traction for penetrating hard materials
• Powerful hydraulic system for fast, efficient work cycles
• Scania DC13 Stage V 6-cylinder engine compliant with Stage V emissions

More information
High power and durable construction enable the DL550-7 to operate under heavy loads. The combination of hydraulic capacity and the Scania DC13 engine ensures optimum bucket fill every cycle and reliable performance in demanding applications while meeting Stage V emission requirements.

Transparent Bucket System
To reduce front blind spots the loader is equipped with two cameras (upper and lower). The system combines and projects the images in real time on the cab monitor using a curved-projection method, improving frontal visibility and safety during loading and manoeuvres.

Bucket options (General purpose)

• Straight side cutter, teeth, width 3404 mm — 5.4 m³
• Straight side cutter, bolt-on cutting edge, width 3404 mm — 5.7 m³
• Performance bucket - straight side cutter, teeth, width 3400 mm — 5.7 m³
• Performance bucket - straight side cutter, bolt-on cutting edge, width 3400 mm — 5.9 m³

Bucket options (Material handling)

• Convex side cutter, teeth, width 3400 mm — 5.9 m³
• Convex side cutter, bolt-on cutting edge, width 3400 mm — 6.1 m³

Options & Attachments

• Quick couplers & control kits (available attachment options)

Machine specifications (summary)
Bucket capacity — 5.4 m³
Tipping load — 24830 kg
Static tipping load (at 40°) — 21897 kg
Length with bucket — 9885 mm
Width with bucket — 3400 mm
Height — 3863 mm
Dump height (at 45°) with bolt-on cutting edge — 3228 mm
Dump reach (at 45°) with bolt-on cutting edge — 1504 mm
Wheel base — 3700 mm
Engine — Scania DC13 Stage V (6-cylinder)
Operating weight — 33209 kg
Engine power — 283 kW (380 HP) at 1800 rpm
Breakout force — 230 kN

Caractéristiques / spécifications techniques

• Model: DL550-7
• Brand: Develon
• Engine: Scania DC13 Stage V (6-cylinder)
• Bucket capacity (standard): 5.4 m³
• Available bucket options: 5.4 m³, 5.7 m³, 5.9 m³, 6.1 m³ (depending on configuration)
• Tipping load: 24830 kg
• Static tipping load (40°): 21897 kg
• Operating weight: 33209 kg
• Engine power: 283 kW (380 HP) at 1800 rpm
• Breakout force: 230 kN
• Length with bucket: 9885 mm
• Width with bucket: 3400 mm
• Height: 3863 mm
• Dump height (45°, bolt-on): 3228 mm
• Dump reach (45°, bolt-on): 1504 mm
• Wheel base: 3700 mm
