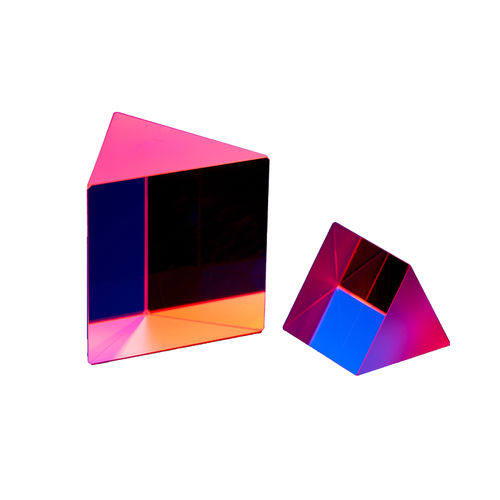

Dispersion prism GCL-03013 series

equilateral

An equilateral dispersing prism has an equilateral triangle in the crosssection with the three sides of equal length. They are used for wavelength separation. A light ray is refracted twice, passing through the prism with total deviation denoted by qd top angle. Deviation is a function of refractive index, and hence wavelength. Angular dispersion is the difference in deviation for light rays having different wavelengths and varies with prism orientation. An equilateral dispersing prism has an equilateral triangle in the crosssection with the three sides of equal length. They are used for wavelength separation. A light ray is refracted twice, passing through the prism with total deviation denoted by qd top angle. Deviation is a function of refractive index, and hence wavelength. Angular dispersion is the difference in deviation for light rays having different wavelengths and varies with prism orientation. H-ZF13 is a flint glass that offers excellent performance in the visible and NIR spectral range. It offers a high refractive index and low Abbe number, making it excellent for use in an equilateral dispersive prism. Material：H-ZF13 (CDGM) Working Wavelength：420nm-2.3μm Coating：1/4 wave MgF2 coating at 550nm for all 3 surfaces
