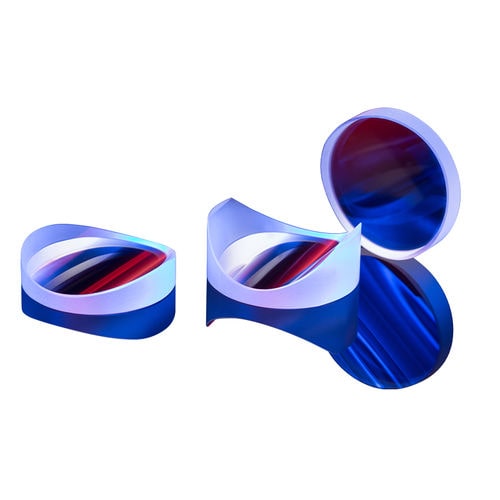

Cylindrical lens element GCL-1103 series

BK7spectrum

Similar to a Plano-Concave lens in profile, but only as cylinder instead of a sphere, this cylindrical lens focuses light only in one as a cylinder dimension. It can be used with cylindrical plano-convex lens together in beam expander applications. • Effective Focal Length(f): ±2% at 587.6nm • Dimension Tolerance: +0/-0.2 • Center Thickness Tolerance: ±0.2 • Surface Quality: 60-40 scratch-dig • Clear Aperture: 90% surface area • Centration: 3' • Coatings: 1/4 wave MgF2 coating at 550nm for 0˚ angle of incidence
