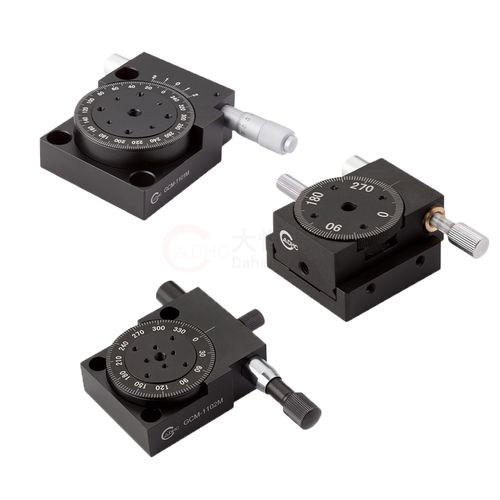

Rotary stage GCM-110 seriesmanualprecisionmicrometer-driven
Add to favorites
Compare this product
Characteristics
- Orientation
- rotary
- Type
- manual
- Other characteristics
- precision, micrometer-driven
Description
These stages allow manual rotation through 360° and fine angular adjustments achieved through a precision worm gear drive or micrometer movement. The GCM-1104M, GCM-1105 and GCM-1109M models have a central hole to allow the passage of light or can be fitted with an optional adapter (GCM-110401M or GCM-110501M, respectively) for conversion to a solid rotation stage. The GCM-11 series can be mounted on the GCM-12 series Translation Stages or optical platforms.
▲ 360° Continuous Rotation
▲ Fine Adjustment Range: ±3°to ±5°
▲ Fine Adjustment Resolution: ±1 arcmin to ±10 arcmin
