Translation stage GCM-T

precisionaluminumcrossed roller

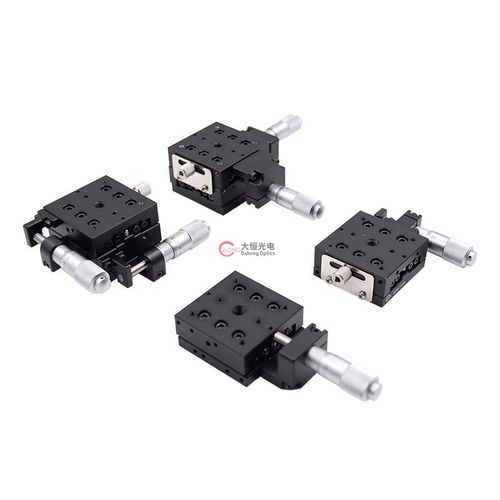

GCM-T Series Translation Stages manufactured by Daheng Optics, which is made of aluminum alloy. These stages use crossed-roller bearings to support precision motion and high load capacities. The translation stage is divided into single-axis and dual-axis types. The thickness of single-axis is 20mm, and the thickness of dual-axis is 33mm. The size of the corresponding platform is 45x45mm and 65x65mm, with travel of ±6.5mm and ±12.5mm respectively. The customer can change the installation position of the micrometer according to the use demand, and the installation hole position is reserved for each translation stage. GCM-T13M Series is Daheng Optics' precision-level translation stage made of aluminum alloy, featuring cross-roller guides to enhance accuracy and load capacity. The stages are available in 1-axis and 2-axis configurations: 1-axis stage: 20mm thickness, ±6.5mm travel, 45×45mm table size 2-axis stage: 33mm thickness, ±6.5mm travel per axis, 45×45mm table size
