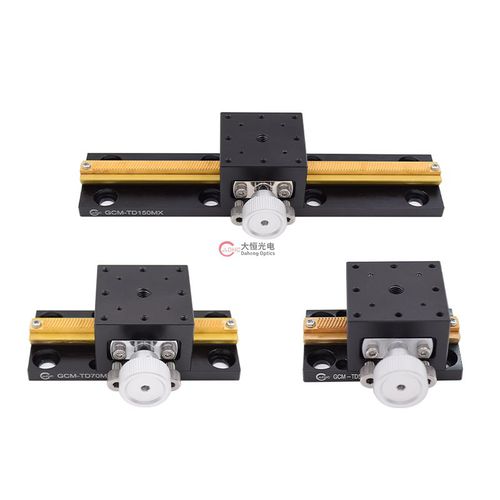

Translation stage GCM-TD150MX

precisionwith rack-and-pinion transmission

This series of stages are driven by rack and pinion to achieve translation. They have the characteristics of long travel, fast speed, smooth movement and convenient use. A ruled scale and vernier permit a readout accuracy of 0.1 mm. The thickness of the stage is 32mm and the travel is 50mm, 70mm and 150mm. The platform size is 40X40mm. This series of stages are driven by rack and pinion to achieve translation. They have the characteristics of long travel, fast speed, smooth movement and convenient use. A ruled scale and vernier permit a readout accuracy of 0.1 mm. The stage has mounting holes that can be combined with each other, and the right angle bracket GCM-531402M can be combined with each other to form two-dimensional or three-dimensional with vertical direction.
