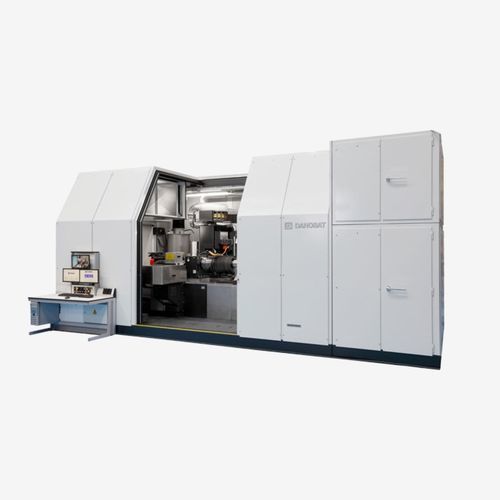

Turbine blade grinding machine mBTG-DANTIP

for rotorshorizontalCNC

Product overview
These machines grind, deburr and measure blade tips of assembled aero engine and APU rotors while rotating at speeds up to 7000 rpm. The mBTG-DANTIP platform supports multiple rotor sizes and configurations and can be supplied as a standalone cell or integrated with vertical grinders for match machining of rotors and compressor casings.

Highlights

• Over 35 years of partnership with jet engine OEMs and major MROs
• Optimised, rigid, dynamic and thermally stable mechanical design
• Spindle with an average service life exceeding 10 years
• Can be delivered as part of a cell with vertical grinders for match machining
• Global specialist support team for blade-tip grinding

Technology

• Air-conditioned enclosure for thermal stability and process accuracy
• Robust pedestals and dual angular-contact bearings per spindle for high stiffness
• dBTM in-process measuring system: OEM-approved, in-house laser-based measurement
• High-speed laser for real-time measurement and automatic in-process control
• DANTIP conversational programming with canned cycles to minimise operator influence

Technical data (metric / per model)

• Models: mBTG-400 | mBTG-800 | DANTIP-R3
• Grinding diameter (mm): 410 | 800 | 1370
• Grinding length (mm): 600 | 860 | 1500
• Maximum component length (mm): 750 | 1400 | 2000
• Component speed (rpm): 10–7000 (mBTG-400) | 10–4500 (mBTG-800; 7000* special) | 10–3000 (DANTIP-R3; 4500* special)
• Wheelhead swivel range (°): -10 to +200 (all models)

Typical applications

• Aero engine rotors (commercial and helicopter engines)
• Gas turbine engine rotors

Service & support

• Annual preventive maintenance, calibration and customised service plans
• Retrofit options: control and dBTM upgrades and obsolescence management
• Retooling: engineering and manufacture of tooling packages for rotors

Characteristics / technical specifications

• Model: mBTG-DANTIP (mBTG-400, mBTG-800, DANTIP-R3)
• Grinding diameters (mm): 410 / 800 / 1370
• Grinding lengths (mm): 600 / 860 / 1500
• Maximum component length (mm): up to 2000 (model dependent)
• Spindle/component speed: up to 7000 rpm (model/configuration dependent)
• Wheelhead swivel: -10° to +200°
• In-process measuring: dBTM high-speed laser (OEM-approved)
• Operation: fully automatic with DANTIP conversational programming and canned cycles
• Environmental control: air-conditioned enclosure for thermal stability
• Mechanical design: robust pedestals and dual angular-contact bearings for high rigidity
