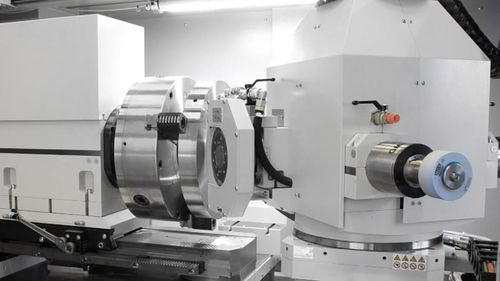

External cylindrical grinding center

internal cylindricalfor inside diameterfor shaft

Overview
Fully customised grinding solutions for your part. Drawing on decades of application expertise and manufacturing insight, Overbeck (part of Danobat Group) transforms know-how into fully optimised, purpose-built grinding solutions. Fully engineered machines adapt hardware and software specifically to the part and process, delivering higher precision, stability and throughput.

Custom-engineered approach

• Tailor-made machine architecture designed from requirements and part geometry.
• Close collaboration with manufacturers to define process, hardware and software needs.
• Integration of custom mechanical layouts (e.g. U-axis), multiple dressing units and tooling to meet complex geometries.

Real-world case study (examples)
The ILD family (example: ILD-700) is designed for large bearings and complex aerospace components, delivering high precision and stability for IDs, ODs, raceways, tapers, shoulders and ribs. The IED-1200 example demonstrates complete internal and external grinding in a single setup: independent cross-slides for ID and OD grinding, high rigidity and integrated in-process measuring systems delivering sub-2 µm results in roundness, concentricity and cylindricity.

Software
Software is engineered to match each customised machine. Customer-specific programs (polygons, eccentrics, squares, punches, etc.) are managed in a graphical catalogue. Once a process type is selected, entering a few part-specific parameters automatically generates the grinding profile, enabling fast, precise setup and repeatability.

Applications & benefits

• Special applications where standard grinders are insufficient (aerospace, bearings, spindles, complex components).
• Complete grinding cycles in a single setup to ensure ideal references between internal and external features.
• Enhanced thermal stability, rigidity and precision for high-value components and high-volume production.

Caractéristiques / spécifications techniques

• Machine type: purpose-built, custom-engineered internal/external grinding machines (Overbeck).
• Process capabilities: internal grinding (IDs), external grinding (ODs), raceways, tapers, shoulders, ribs and complex transitions in a single setup.
• Mechanical features: independent cross-slides for ID and OD; optional U-axis for large diameters/lengths; high-rigidity construction for precision.
• Dressing systems: fixed, rotary, radius or roller dressers; multiple dressing units; turret arrangements possible.
• Measuring & control: optional in-process measuring systems and customised software generating profiles from part parameters.
• Typical precision: sub-2 µm achievable for roundness/concentricity/cylindricity when configured with appropriate measuring systems (example IED-1200).
• Workpiece capacity (example indication from imagery and case studies): work head / workpiece combinations up to ~1300 mm length and ~500 kg (application dependent).
• Examples of models referenced on the page: ILD series (e.g. ILD-700) and IED series (e.g. IED-1200) as purpose-built solutions.
