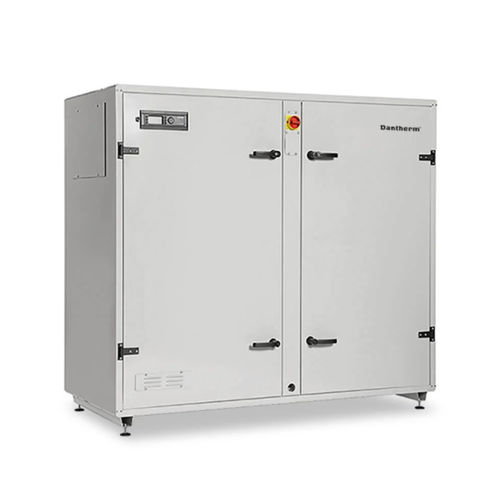

Floor-standing air handling unit DANX series

for residential applicationsoutdoorcompact

The DanX XD is a very effective ventilation system that uses outdoor air to provide dehumidification using a double heat exchanger that delivers up to a 95% heat recovery. This reduces energy consumption and total operating costs. Making the unit perfect for managing humidity and temperature in the pool room. Key features Built-in user friendly control system for high-quality demand management Automatic monitoring and control of pool hall temperature and humidity The custom-built software runs the unit as efficiently as possible under different conditions Double crossflow heat exchangers with a high efficiency of more than 95% and a low pressure drop Built-in by-pass for free cooling in summertime Highly energy-efficient EC plug fans Efficient M5/ePM10 70% and F7/ePM1 55% compact filters with low pressure drop Self-bearing cabinet with hot-dip galvanised, powderpainted sandwich panels with 50mm mineral wool insulation, internal partition walls with 30mm and bottom frame with adjustable feet Designed to withstand the aggressive swimming pool environment (Corrosion class C4 according to EN/ISO 12944-2), with epoxy-coated crossflow heat exchangers heating coil with aluminium frame, prepainted fins and epoxy coating to protect all fasteners, bolts, nuts Two large inspection doors with strong hinges and tongue locks and handles for easy access for service All-in-one box solutions for easy and quick installation – all sensors and electrical components pre-connected BMS communication with either Modbus or BACnet DanX XD with double cross flow heat exchanger
