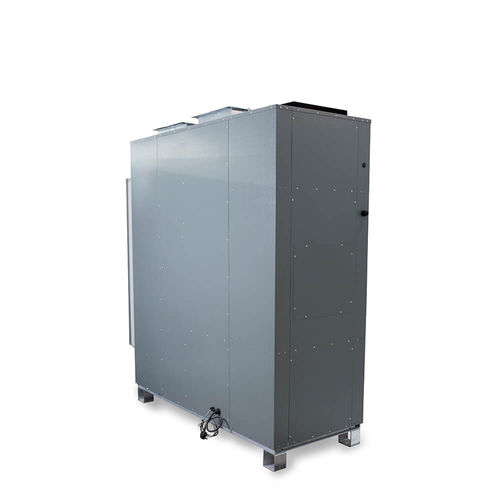

Air handling unit for residential applications DT series

mobileindoor

The sophisticated Delta air handling units incorporate hybrid heat pump and fresh air dehumidification technology. With dynamic heat recovery to swimming pool water and air using a heat pump, a Delta solution is the ultimate choice for a commercial or public indoor swimming pool. Key features Dynamic heat pump heat recovery to pool and air Self-regulating fresh air control with heat recovery Automatic control of exhaust air volume to match pool usage Free-cooling (Delta 1-2) Free-cooling and heat pump air cooling (Delta 4-16) Integral LPHW heat exchangers for pool and air Controllable rpm EC/inverter fans in all models PLC control with 5.7" touchscreen user interface Remote monitoring/control​ The minimum security update period for Delta products is zero months Remote monitoring/control​ Screen mirroring to Android/iOS mobile devices using third-party app Screen mirroring to web browser with ActiveX BMS interfaces for Modbus, BACnet IP and BACnet MS/TP Wired remote control interfaces Options Delta 2-6 single or three phase Delta 8-16 three phase only Upgraded LPHW heat exchanger for air heating Left-hand or right-hand orientation (Delta 4-16) Top, side or bottom supply fan outlet Front or rear supply fan outlet (Delta 14-16) Rear exhaust and fresh air connections (Delta 14-16) Connection for RCU (Delta 16)
