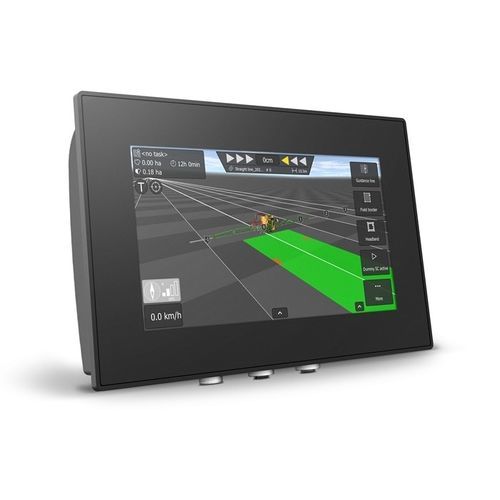

7" vehicle-mount computer CCpilot-V700-CODESYS-RT-Visu

ARM Cortex-A8NXP i.MX 8IP 65

CCpilot V700 is designed to address challenges created by the rapid increases in software content in modern mobile machines. Systems for improved productivity, safety and security are software intensive. And the performance of graphical user interfaces is a key success factor for how the machine system is perceived. To efficiently realize these types of solutions, it is critical to use a platform that supports capable software frameworks and toolchains. The CCpilot V700 is based on an i.MX 8DualXPlus processor which leverages the next generation of graphics APIs and frameworks, making it possible to realize advanced systems. Computing Core AIN PROCESSOR - i.MX8 DualX Plus, Dual Core CPU, iGPU and CoProcessor. 2 x Cortex A35 @ 1.0GHz CO PROCESSOR - Runs watchdog functions controlling integrity of product, for increased reliability and safety. STORAGE - 4 GB eMMc pseudoSLC mode RAM - 1 GB 32 bit LPDDR4 @ 1200mhz CPU - i.MX8 DualX Plus, Dual Core CPU, iGPU and CoProcessor. 2 x Cortex A35 @ 1.0GHz GPU - Vivante GC7000lite Display TYPE - IPS TFT with Backlight COVER LENS - Tempered glass with AG coating SIZE AND RESOLUTION - 7" WVGA, 800 x 480 COLOR DEPTH - 24 bit CONTRAST RATION - 1000:1 BRIGHTNESS* - 800 cd/m2 DIMMING - Yes, automatically controlled through the ambient light sensor or manually in steps, 1-100%. OPTICAL BONDING - Yes. Screen & cover lens optically bonded to improve sunlight readability and prevent fogging. AMBIENT LIGHT SENSOR - Yes HMI TOUCH SCREEN - PCAP up to 10 point Multi touch SOFT KEYS - None STATUS LED - RGB LED BUZZER - Yes, Configurable frequency and volume. Max 75dB @ 10cm from front. INTERFACES - COMMON FOR ALL VERSIONS
