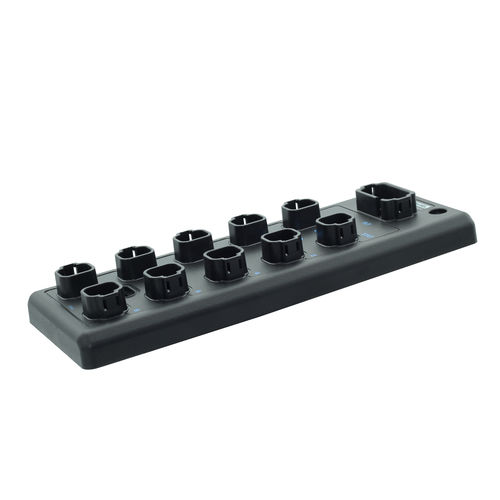

Robust input module DP-34044-2-000

analogdigitalCANopen

This input module from the xtremeDB series offers 16 freely configurable input signals and a CANopen connection. Eight inputs can be used as analog inputs for current or voltage measurement or as ratiometric inputs. Eight further inputs can be configured as digital plus (PNP) or minus switching (NPN) inputs. Two of these digital inputs can also be configured as frequency inputs or counters. Mechanical Data Dimensions - 97 x 265 x 34 mm Weight - 680 g Material (Housing) - PA, reinforced Power Connector - DT-18 (A-cod.) IO connector - DT-4 Electrical Data Operating Voltage - 8 … 32 V DC Operating Current per Contact / Potential (max.) - 13 A Sum Current (max.) - 13 A Supply Protection - Reverse polarity protection Block diagnoses - Undervoltage | Overvoltage | Overtemperature LED Indicators - Power: blue | Bus: green | Status: green | Signal: yellow | Error: red Inputs Range analog value - 4...20 mA | 0…5 V / 0…10 V / 0…32 V Number of frequency inputs FRQ - 2 Frequency Range - 10...3.000 Hz Input diagnoses - Undervoltage | overvoltage | short circuit Environmental Conditions Ambient temperature - -40 °C…+80 °C Storage temperature - -40 °C…+85 °C Standards & Approvals EMC - EN 61000-6-2 | IEC/EN 61000-6-3 | EN 61000-6-4 | ISO 13766-1 | ISO 13766-2 Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Product Family: - xtremeDB Port Number: - 8 Connection: - DT-4, DT-18 Baudrate: - 250, 500 kbit/s Input Signal Type: - DI, DI/AI, DI/FRQ/CNT Auxiliary Voltage: - 8 … 32 V DC Housing Material: - Polyamide, reinforced Operating Temperature: - -40°C ... +80°C Mounting system: - 2x 6 mm round hole + 1x slotted hole Standards / Approvals: - ISO 13309, EN ISO 13766-2, EN ISO 13766-1
