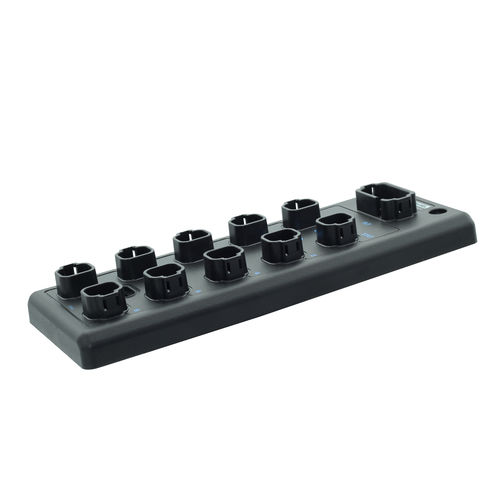

Robust output module DP-34044-5-200

digitalCANopen16 digital outputs

The DO output module offers a total of 16 purely digital outputs CANopen. This makes it ideal for switching worklights on and off, for example. The temporary total current of the module is 52 A.. Mechanical Data Dimensions - 97 x 265 x 34 mm Weight - 680 g Material (Housing) - PA, reinforced Power Connector - DT-18 (A-cod.) IO connector - DT-4 Electrical Data Operating Voltage - 8 … 32 V DC Operating Current per Contact / Potential (max.) - 13 A Sum Current (max.) - 52 A Supply Protection - Reverse polarity protection Block diagnoses - Undervoltage | Overvoltage | Overtemperature LED Indicators - Power: blue | Bus: green | Status: green | Actuator Power: blue | Signal: yellow | Error: red Outputs DO output current max. - 2x 10 A | 14x 4 A Output Protection - Overload | Short Circuit Output Diagnoses - Actual Current | Overcurrent | Short Circuit Environmental Conditions Ambient temperature - -40 °C…+80 °C Storage temperature - -40 °C…+85 °C Standards & Approvals EMC - EN 61000-6-2 | IEC/EN 61000-6-3 | EN 61000-6-4 | ISO 13766-1 | ISO 13766-2 | Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Product Family: - xtremeDB Port Number: - 8 Connection: - DT-4, DT-18 Baudrate: - 250, 500 kbit/s Output Signal Type: - DO [4 A], DO [10 A] Auxiliary Voltage: - 8 … 32 V DC Housing Material: - Polyamide, reinforced Operating Temperature: - -40°C ... +80°C Mounting system: - 2x 6 mm round hole + 1x slotted hole Standards / Approvals: - ISO 13309, EN ISO 13766-1, EN ISO 13766-2
