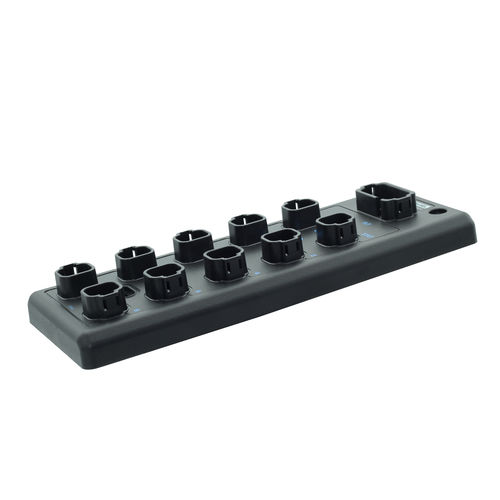

Robust output module DP-34044-3-000

digitalCANSAE J1939

The SAE J1939 -3 output block provides 16 outputs which can be individually configured as digital "DO" signals or alternatively as 2 DO and 14 PWM(I) (pulse width modulated, current controlled). The two DO outputs can be loaded up to 10 A, the remaining 14 DO/PWM(I) with 4 A each. The temporary total current of the -3 module is 52 A. Mechanical Data Dimensions - 97 x 265 x 34 mm Weight - 680 g Material (Housing) - PA, reinforced Power Connector - DT-18 (A-cod.) IO connector - DT-4 Electrical Data Operating Voltage - 8 … 32 V DC Operating Current per Contact / Potential (max.) - 13 A Sum Current (max.) - 52 A Supply Protection - Reverse polarity protection Block diagnoses - Undervoltage | Overvoltage | Overtemperature LED Indicators - Power: blue | Bus: green | Status: green | Actuator Power: blue | Signal: yellow | Error: red Outputs Number of outputs DO / PWM / PWMi - 2 + 14 DO output current max. - 2x 10 A | 14x 4 A Number of PWM outputs - 14 PWM output current max. - 4 A Number of PWM(i) outputs - 14 PWM(i) output current max. - 4 A Output Protection - Overload | Short Circuit Output Diagnoses - Actual Current | Overcurrent | Short Circuit Environmental Conditions Ambient temperature - -40 °C…+80 °C Storage temperature - -40 °C…+85 °C Standards & Approvals EMC - EN 61000-6-2 | IEC/EN 61000-6-3 | EN 61000-6-4 | ISO 13766-1 | ISO 13766-2 Suitable For: - CCpilot V1200, xtremeDBmini, CCpilot V700, CCpilot V1000 Product Family: - xtremeDB Port Number: - 8 Connection: - DT-4, DT-18 Baudrate: - 250, 500 kbit/s Output Signal Type: - DO [4 A], DO [10 A], PWM [4 A], PWMi [4 A] Auxiliary Voltage: - 8 … 32 V DC Housing Material: - Polyamide, reinforced
