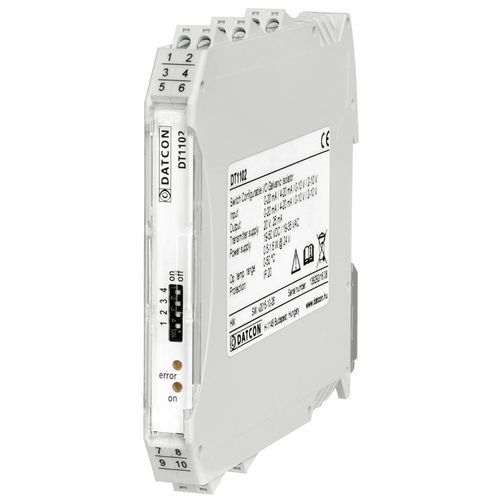

Switch selectable input/output signal isolator DT1102 (PS)

galvaniccurrentvoltage

Product features

• Selectable input/output ranges with front panel switches:
• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V input
• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V output
• 3 way isolation
• 20 VDC transmitter supply on the input for two wire transmitters
• Non-linearity: < 0.01%
• Temperature-coefficient: 25 ppm / °C typ.
• 24 V ± 10% DC, 230 V ± 10% AC/DC power supply
• TS-35 rail mounting, 12.5 mm width

Product description
The DT1102 (PS) Switch Selectable Input-Output Galvanic Isolator provides signal transmission and conversion between DC current or DC voltage signal source and signal processing units.
The instruments feature complete 3-way isolation: the input, the output and the power supply are isolated from each other.
Continuous isolation voltage is 250 VACeff, between the input, the output and the power supply.
The instrument provides 20 VDC / 24 mA on the input for supplying passive two wire transmitters.
The DT1102 is particularly advantageous in industrial plants where different signal levels are in use.
The input/output ranges are selectable with front panel switches:

• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V input
• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V output

The instruments has two inputs:

• current: 0 (4) mA – 20 mA*
• voltage: 0 (2 ) V – 10 V*

The instruments has two outputs:

• current: 0 (4) mA – 20 mA*
• voltage: 0 (2) V – 10 V*

* it may be use only one input and one output at a time.
There are two power supply version: DT1102: 24 V ± 10% DC, DT1102 PS: 230 V ± 10% AC/DC.
The transmission parameters are outstandingly good: the non-linearity is < 0.01%, and the temperature coefficient is < 25 ppm / °C TYP.
Front panel LED’s indicate the power on state and the error states (input / output overrange, internal errors, etc.).

Technical specification
Safety data: The connection terminals of the supply voltages are isolated from each other, the isolation is in compliance with the standard EN 61010-1, taking into consideration the following:

• Pollution level: 2
• Measurement category: II

Input parameters:

• Input signal: DC current or DC voltage
• Ranges: 0-20 mA, 4-20 mA, 0-10 V, 2-10 V
• Overload: 400 mA (current input), 100 V (voltage input)
• Input resistance (current input): 10 ohm
• Input resistance (voltage input): 102 kohm

Transmitter power supply:

• Voltage: > 20 V (20 mA load)
• Overcurrent protection: 25 mA

Output parameters:

• Output signal: DC current or DC voltage
• Ranges: 0-20 mA, 4-20 mA (current output), 0-10 V, 2-10 V (voltage output)
• Overdriving ability: 22.5 mA (current output), 11 V (voltage output)
• Load resistance: ≤ 650 ohm (current output); ≥ 500 ohm (voltage output)
• Output resistance: > 3 Mohm (current output); < 0.5 ohm (voltage output)
• Error of output: ±0.05% @ 25 ºC ±2 ºC
• Non-linearity: 0.01% (max.)
• Temperature coefficient: tip.: 25 ppm / ºC; max.: 50 ppm / ºC
• Supply-voltage effect: practically zero
• Settling time: 250 ms (90%) / 300 ms (99%)

Galvanic isolation:

• Working voltage: 250 Veff (between the input, the output and the power supply terminals) 2500 VDC (1 min.)

Power supply:

• Supply voltage: 24 V ± 10% DC (DT1102) or 230 V ± 10% AC/DC (DT1102 PS)
• Power consumption: 1.6 W (DT1102); 2.4 W / 3.8 VA (DT1102 PS)

Ambient conditions:

• Operating temperature range: 0-50 °C (-20 - +50 °C for customer request)
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet
• Mounting position: vertical (horizontal rail position)

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Noise emission: Group 1, Class B
• Immunity: industrial area
• ESD: 4 kV / 8 kV surface / air
• BURST: 2 kV / 1 kV power / signal
• SURGE: 1 kV
• Conducted RF immunity: 3 Veff
• Power failure bypass: 20 ms @ 190-250 VAC

General data:

• Housing: TS-35 rail mounting housing material: polyamide PA6.6
• Connection: Pluggable screw-terminal
• Connecting cable: 1.5 mm (max.)
• Dimensions: 12.5 × 108 × 114 mm (width × height × depth)
• Weight: 0.15 kg
• Protection: IP20

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
