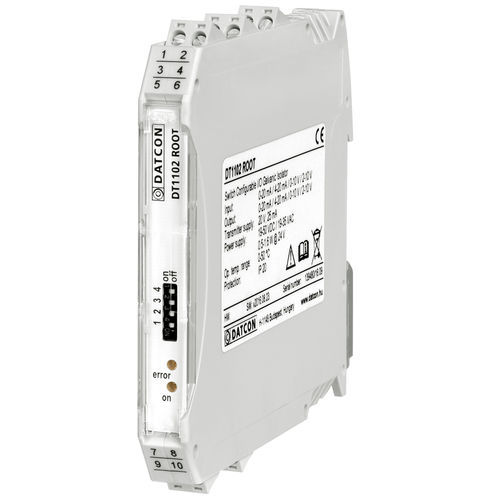

Galvanic signal isolator DT1102 ROOT

currentvoltage4-20mA

Product features

• square root transfer characteristics
• switch-selectable signal ranges on input and output
• 0–20 mA / 4–20 mA / 0–10 V / 2–10 V inputs
• 20–0 mA / 20–4 mA / 10–0 V / 10–2 V outputs
• 3-way isolation
• 20 VDC transmitter power at the input for two transmitters
• non-linearity: < 0,02% typ
• temperature coefficient: 25 ppm / °C TYP
• 24 V ±10% DC or 230 V ±10% AC/DC power supply
• TS-35 rail mounting, 12.5 mm width

Product description
The DT1102 ROOT (PS) provides galvanic isolation and signal conversion between the transmitter (or another signal source) and the signal processing unit.
The galvanic isolation is 3-way: the input, output and power supply are galvanically isolated of each other.
The continuous isolation voltage is 250 VACeff in all three directions.
The instrument provides 20 VDC / 24 mA on the input for supplying passive two wire transmitters.
The input and output signal ranges can be selected in any combination using the front switches:

• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V input
• 0-20 mA / 4-20 mA / 0-10 V / 2-10 V output

The instrument has two inputs:

• current: 0 (4) mA – 20 mA*
• voltage: 0 (2 ) V – 10 V*

The instrument has two outputs:

• current: 0 (4) mA – 20 mA*
• voltage: 0 (2 ) V – 10 V*

* it may be use only one input and one output at a time.
The device can be ordered with two types of power supply:

• DT1102 INV: 24 V ± 10% DC
• DT1102 INV PS: 230 V ± 10% AC/DC

The transfer characteristics are outstandingly good: non-linearity < 0,02% TYP, temperature coefficient: 25 ppm / °C TYP
Front LED indicators provide information on the presence of power and possible fault conditions.

Technical specification
Safety data: The connection terminals of the input, output and supply voltage are isolated from each other, the isolation is in compliance with the
standard EN 61010-1, taking into consideration the following:.

• Pollution level: 2
• Measurement category: II

Input parameters (current):

• Input signal: DC current
• Ranges: 0-20 mA, 4-20 mA
• Overload: 400 mA
• Input resistance: 10 ohm

Input parameters (voltage):

• Input signal: DC voltage
• Ranges: 0-10 V, 2-10 V
• Overload: 100 V
• Input resistance: 102 kohm

Transmitter power supply:

• Voltage: > 20 VDC (20 mA load)
• Overcurrent protection: 25 mA

Output parameters (current):

• Output signal: DC current
• Ranges: 20-0 mA, 20-4 mA
• Overdriving capability: 22.5 mA
• Load resistance: ≤ 500 ohm
• Output resistance: > 5 M ohm

Output parameters (voltage):

• Output signal: DC voltage
• Ranges: 10-0 V, 10-2 V
• Overdriving capability: 11 V
• Load resistance: ≥ 500 ohm
• Output resistance: < 0,5 ohm

Transfer characteristics:

• Transfer function: square root
• Output signal error: ±0.1% FSR @ 25 ºC ±2 ºC
• Non-linearity: 0,02 % (max.)
• Temperature coefficient: 25 ppm / °C TYP, 50 ppm / °C max.
• Supply-voltage effect: practically zero
• Settling time: 250 ms (10–90%) / 300 ms (99%)

Galvanic isolation:

• Working voltage: 250 Veff (between the input,output and power supply terminals)
• Test voltage: Type test: 4250 VDC (1 min), Routin test: 2500 VDC (1 min)

Power supply:

• Supply voltage: DT1102 ROOT: 24 V ±10% DC, DT1102 ROOT PS: 230 V ±10% AC/DC,
• Power consumption: DT1102 ROOT: ≤ 2,2 W DT1102 ROOT PS: 3,3 W, 5,2 VA

Ambient conditions:

• Operating temperature range: 0-50 °C (-20-60 °C for customer request)
• Relative humidity: 90% (max., non-condensing)
• Place of installation: cabinet
• Mounting position: vertical (horizontal rail position)

Electromagnetic compatibility (EMC) accordance with the standard EN 61326-1

• Noise emission: Group 1, Class B
• Immunity: industrial area
• ESD: 4 kV/8 kV surface / air
• BURST: 2 kV/1 kV power / signal
• SURGE: 1 kV
• Conducted RF immunity: 3 Veff

General data:

• Housing: TS-35 rail mounting housing material: polyamide PA6.6
• Connection: Pluggable screw-terminal
• Connecting cable: 0,25-2,5 mm2
• Dimensions / Weight: 12,5 × 99 × 115 mm (width × height × depth) / 0,15 kg
• Protection: IP20

Detailed information see in operating instructions. The Manufacturer maintans the right to change the technical data!
