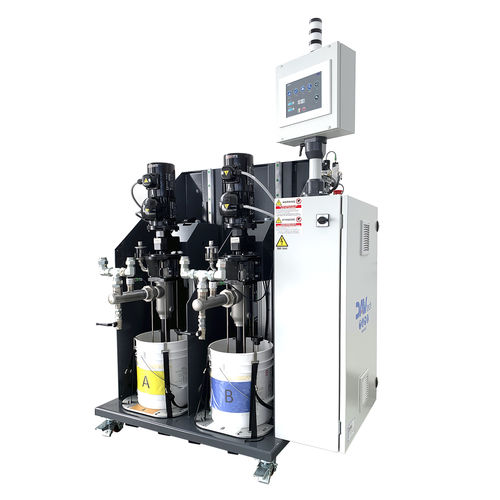

Progressive cavity pump PPE 2K

electricmobileindustrial

Dual servo-controlled progressive cavity pump, electrically driven with PID control. The result is a product pumping process free of pressure peaks, ensuring no stress on the product and preventing component separation. The pump is adaptable to drums from 5 to 50 liters. A ready-to-integrate solution for automated systems, offering full control of dosing process parameters via PLC and HMI, interfaced with the production line through Profinet. Perfect for feeding thermally conductive pastes – Gap Filler. • Tungsten carbide rotor to minimize wear when handling abrasive fluids • Integrated PLC and HMI for easy interfacing with the production process • Drum presence sensors integrated into the structure • Level control with analog output for continuous feedback • Operating principle prevents stress on the fluid and minimizes the risk of separation • Pump design allows for slow rotation, reducing wear on sliding parts • Sealing system specifically designed for handling highly abrasive materials. OPERATION The volumetric pump is driven by a servo-ventilated motor equipped with a gear reducer, allowing for continuous and rapid variation of rotation speed. This ensures that the fluid pressure at the pump outlet remains constant, regardless of the dosing system’s operating conditions. This feature enables consistent dosing at low pressure, eliminating fluctuations during the process. The PPE2K pump is designed to accommodate drums from 5 to 50 liters and features a custom-made follower plate for the specific drum size. Centering guides and straps make drum replacement quick and easy.
