Horizontal toggle clamp 307-U
stainless steelhold-downlocking

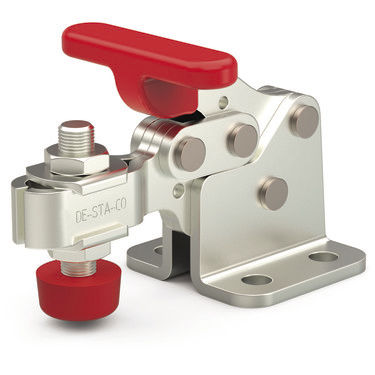

Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 2
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 3
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 4
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 5
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 6
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 7
Horizontal toggle clamp - 307-U - DE-STA-CO - stainless steel / hold-down / locking - image - 8
Add to favorites
Compare this product

Characteristics

Configuration
horizontal
Other characteristics
stainless steel, hold-down, locking, compact
Clamping force

1,560 N

Description

Weight (lb) 0.53 Maximum Holding Capacity (lbf) 350 Clamp Arm Length (in) 1.89 Height Under Clamp Arm (in) 0.89 Accomodates Workpiece Variation No Product Function Clamping DistributorGroup Workholding (Manual, Power and Hydraulic Clamps) Handle Horizonal Application - Food Processing Fair/Medium Service Environment Normal Application - Checking Fixtures Fair/Medium Product Type Compact Application - Machining Fair/Medium Base Mounting Style Flange Application - Wood-Working Excellent/High Toggle Lock Plus No Flanged Washers 507107 Clamp Arm Style U-Bar Handle Opening (+10°) 173 Clamp Bar Opening (+10°) (degrees) 92 Duty Cycle 2 Product Series 305/307/309 Application - Welding Fair/Medium Standard Material Steel Application - Assembly Excellent/High Application - Closures Excellent/High Spindle Assembly 307208-M
