Horizontal toggle clamp 5305-R
hold-downsteellocking

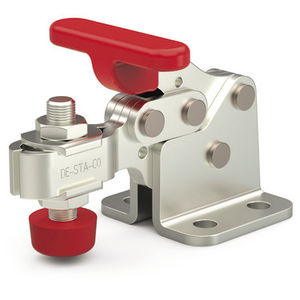

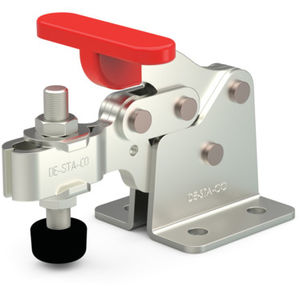

Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 2
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 3
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 4
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 5
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 6
Horizontal toggle clamp - 5305-R - DE-STA-CO - hold-down / steel / locking - image - 7
Add to favorites
Compare this product

Characteristics

Configuration
horizontal
Other characteristics
hold-down, steel, locking
Clamping force

2,670 N

Description

Height Under Clamp Arm (in) 0.81 Clamp Arm Length (in) 2.75 Weight (lb) 1.08 Application - Welding Excellent/High Clamp Bar Opening (+10°) (degrees) 90 DistributorGroup Workholding (Manual, Power and Hydraulic Clamps) Application - Assembly Excellent/High Opening Angle (deg) 90 Standard Material Steel Application - Machining Poor/Low Product Series 5000 PublishedDate 1676898367000 Service Environment Harsh/Dirty Product Type Heavy Duty Product Function Clamping Handle Opening (+10°) 69 Accomodates Workpiece Variation No Clamp Arm Style Solid Bar Application - Food Processing Not Recommended Handle Horizonal Application - Wood-Working Poor/Low Base Mounting Style Flange Application - Closures Poor/Low Application - Checking Fixtures Fair/Medium Duty Cycle 3 Toggle Lock Plus Yes
