Horizontal toggle clamp 323-R
latch typehooksteel

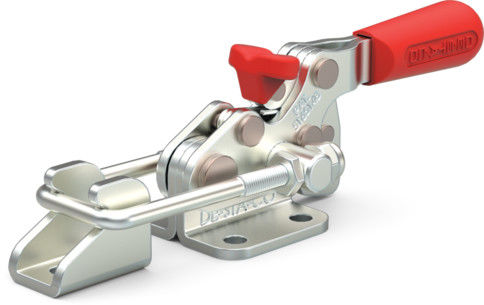

Horizontal toggle clamp - 323-R - DE-STA-CO - latch type / hook / steel
Horizontal toggle clamp - 323-R - DE-STA-CO - latch type / hook / steel
Horizontal toggle clamp - 323-R - DE-STA-CO - latch type / hook / steel - image - 2
Horizontal toggle clamp - 323-R - DE-STA-CO - latch type / hook / steel - image - 3
Add to favorites
Compare this product

Characteristics

Configuration
horizontal, latch type, hook
Other characteristics
steel, adjustable
Clamping force

1,600 N

Description

Drawing Movement without Thumb Control (in) 1.17 Weight (lb) 0.15 Maximum Holding Capacity (lbf) 360.0 Max Hook Adjustment (in) 0.49 Latch Plate 323104-M PublishedDate 1673985603000 Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 27:1 Product Type Standard DistributorGroup Workholding (Manual, Power and Hydraulic Clamps) Standard Material Steel Toggle Lock Plus Yes Base Mounting Style Flange Hook Type U-Hook (Horizontal) Replacement Hook Assembly 323215 Product Function Clamping Product Series 323/331/341 Hook Adjustable Range 10.7 Latch Plate Supplied? Yes
