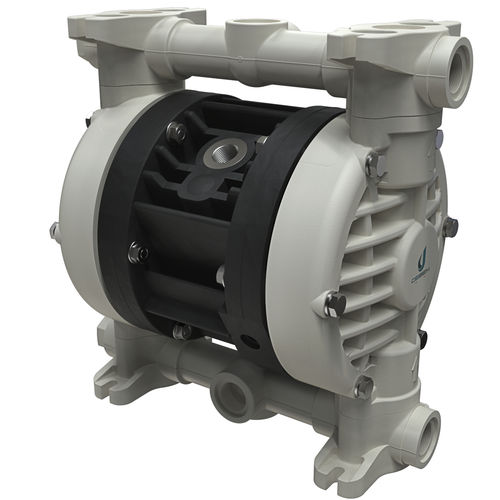

Double-diaphragm pump BOXER 50 for chemicalsair-drivenself-priming
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- for chemicals
- Operation
- air-driven
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, aluminum, PP, PVDF
- Protection level
- ATEX
- Other characteristics
- adjustable, lubricated
- Flow
Min.: 0 l/min
(0 us gal/min)Max.: 60 l/min
(15.85032 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 8 bar
(116.03 psi)- Head
80 m
(262'05" )Min.: 0 m
(0'00" )Max.: 80 m
(262'05" )- Width
241 mm, 247 mm
(9.49 in, 9.72 in)- Height
234 mm, 241 mm
(9.21 in, 9.49 in)- Weight
3.75 kg, 4.25 kg
(8.27 lb, 9.37 lb)
Description
BOXER 50 diaphragm pumps are characterized by exceptional performance, power and strength, making them ideal for pumping liquids with high apparent viscosity even if containing suspended solids.
■ Product designed and constructed in Italy
■ PATENTED stall-prevention pneumatic circuit
■ Operates with non-lubricated air
■ SELF-PRIMING
■ Dry operation
■ ATEX certification for ZONE 1 - ZONE 2
■ IECEx certification
■ Adjustable operating speed
■ Extremely versatile
■ Suitable for pumping liquids with high viscosity and demanding applications
■ Possibility of pumping fluids containing suspended solids
■ Possibility of suspended installation
■ Manifolds can be supplied with stainless steel reinforcement rings for pumps in PP – PP+CF – PVDF
■ Suitable for continuous use
