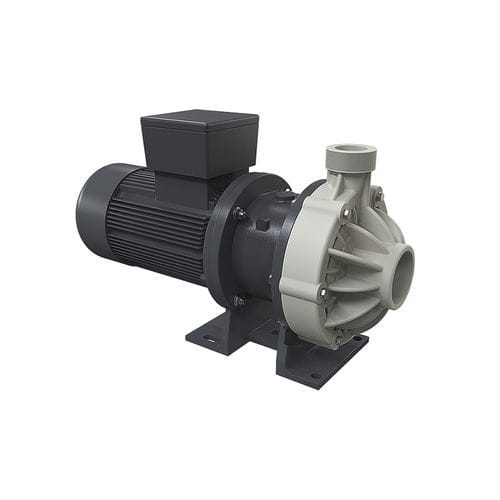

Centrifugal pump KM 70watermagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- water
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial, for the chemical industry
- Applications
- suction, outlet
- Voltage
- 400 V, 380 V
- Protection level
- standard
- Other characteristics
- flange, open, seal
- Flow
65 m³/h
(2,295.45334 ft³/h)- Head
29 m
(95'01" )- Power
4 kW, 5.5 kW, 7.5 kW
(5.44 hp, 7.48 hp, 10.2 hp)- Weight
33 kg, 34.5 kg
(72.75 lb, 76.06 lb)
Description
Electric centrifugal pumps
Suction connections: G 3″ f o DN 80
Delivery connections: G 2″1/2 m o DN 65
* The performance values refer to primed pumps (with water at 20°C) with open outlet and vary based on the construction materials.
** Attention: average values of the different materials configurations for ball and ball seat.
Seal o-ring materials
– EPDM
– VITON®
Standard Package
Protective polyurethane foam wrapping in a wooden crate
FLANGE KIT (DIN standard – ANSI available on request)
– Flange suction 3″ (DN 80) m
– Flange delivery 2″1/2 (DN 65) f
