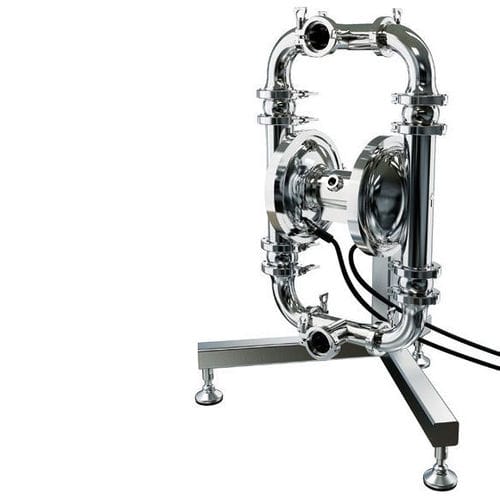

Double-diaphragm pump SANIBOXER-03for chemicalsair-drivenstationary
Add to favorites
Compare this product
Characteristics
- Technology
- double-diaphragm
- Fluid
- for chemicals
- Operation
- air-driven
- Mobility
- stationary
- Domain
- industrial, for the pharmaceutical industry, for the cosmetics industry, sanitary
- Applications
- transfer, drain, transport
- Material
- stainless steel
- Fluid specification
- for solids-laden fluids, for high-viscosity fluids
- Other characteristics
- with detector
- Flow
Max.: 340 l/min
(89.8185 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Max.: 8 bar
(116.03 psi)Min.: 0 bar
(0 psi)- Head
Max.: 80 m
(262'05" )Min.: 2.5 m
(8'02" )- Fluid temperature
Max.: 95 °C
(203 °F)Min.: 3 °C
(37.4 °F)- Input diameter
2 in
- Output diameter
2 in
- Width
673 mm
(26.5 in)- Height
873 mm
(34.37 in)- Weight
38 kg
(83.78 lb)
Description
SANIBOXER pumps are manufactured in mechanically polished AISI 316 L with a surface finish of less than < 0.8 μm.
The pumps are ideal for handling fluids in sectors such as the Pharmaceutical, Cosmetic and Hair care industries. They are an optimal solution for the transport of liquids and fluids with a high apparent viscosity, even with suspended solids.
The pumps are equipped by default with sensors to detect diaphragm rupture to prevent contamination during transfer processes.
