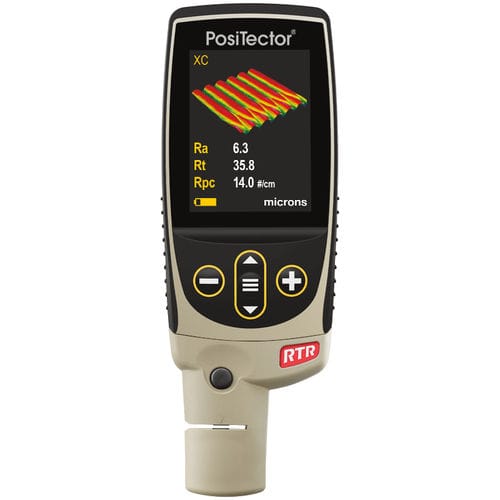

3D profiler PosiTector® RTR 3D series

industriallaboratoryportable

Replica Tape Reader to Measure and Record 2D/3D Surface Profile Parameters Digital spring micrometers measure and record surface profile parameters using Testex Press-O-Film™ replica tape. • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation • Create a replica by burnishing tape on a surface and insert into instrument. 3D imagery and 2D/3D parameters are displayed in seconds! • Reports common parameters: Ra, Rq, Rz, Rp, ­Rv, Rt, Rpc (2D), and Sa, Sq, Sz, Sp, Sv, and Spd (3D) • Ideal for field or laboratory use; flat, curved, or irregular surfaces • Download 3D .SDF image files for analysis in included PosiSoft or third party ­­­software • Certificate of Calibration showing traceability to PTB (for H and HL only) and NPL (for Ra and Rt) included (Long Form) Conforms to ASME B46, ASTM D4417, ISO 8503-5, NACE SP287, SSPC-PA 17, SSPC-SP5, SP6, SP10, SP11-87T, and others Simple • Measures peak height (HL) and common 2D/3D profile parameters such as Ra, Rz, Sq, Spd, and more • Ideal for measuring on flat, curved, or irregular surfaces • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation • NEW On-gage help explains menu items at the touch of a button • RESET feature instantly restores factory settings Durable • NEW Weatherpoof, dustproof, and water-resistant—IP65-rated enclosure • NEW Ergonomic design with durable rubberized grip • Rugged indoor/outdoor instrument—ideal for field or laboratory use • Shock-absorbing, protective rubber holster for added impact resistance • Two year warranty on gage body AND probe
