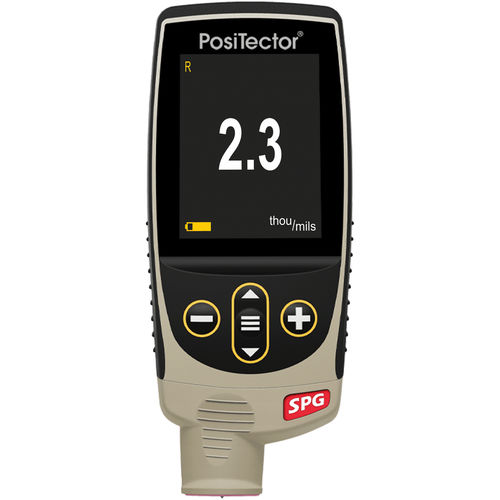

Surface Profile Gages for Blasted Steel, Textured Coatings, and Concrete Profile
Surface Profile Gages use a digital depth micrometer to measure and record peak to valley surface profile heights in preparation for the application of coatings
• - NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• - NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
• - Alumina wear face and tungsten carbide tip for long life and continuous accuracy—field replaceable
• - PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
• - Fast measurement rate of over 50 readings per minute—for quickly measuring large surfaces
• - USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
• - Certificate of Calibration showing traceability to PTB included (Long Form)
Conforms to ASTM D4417-B, ASTM D8271 (SPG TS only), AS 3894.5-C (with optional 30° tip),
U.S. Navy NSI 009-32, Navy NAVSEA 009-32, US Navy NAVSEA PPI 63101-000, SSPC PA 17, SANS 5772, and others
Features
Simple
• - Fast measurement rate of over 50 readings per minute—ideal for quickly and accurately measuring large surfaces
• - NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
• - NEW On-gage help explains menu items at the touch of a button
• - RESET feature instantly restores factory settings
